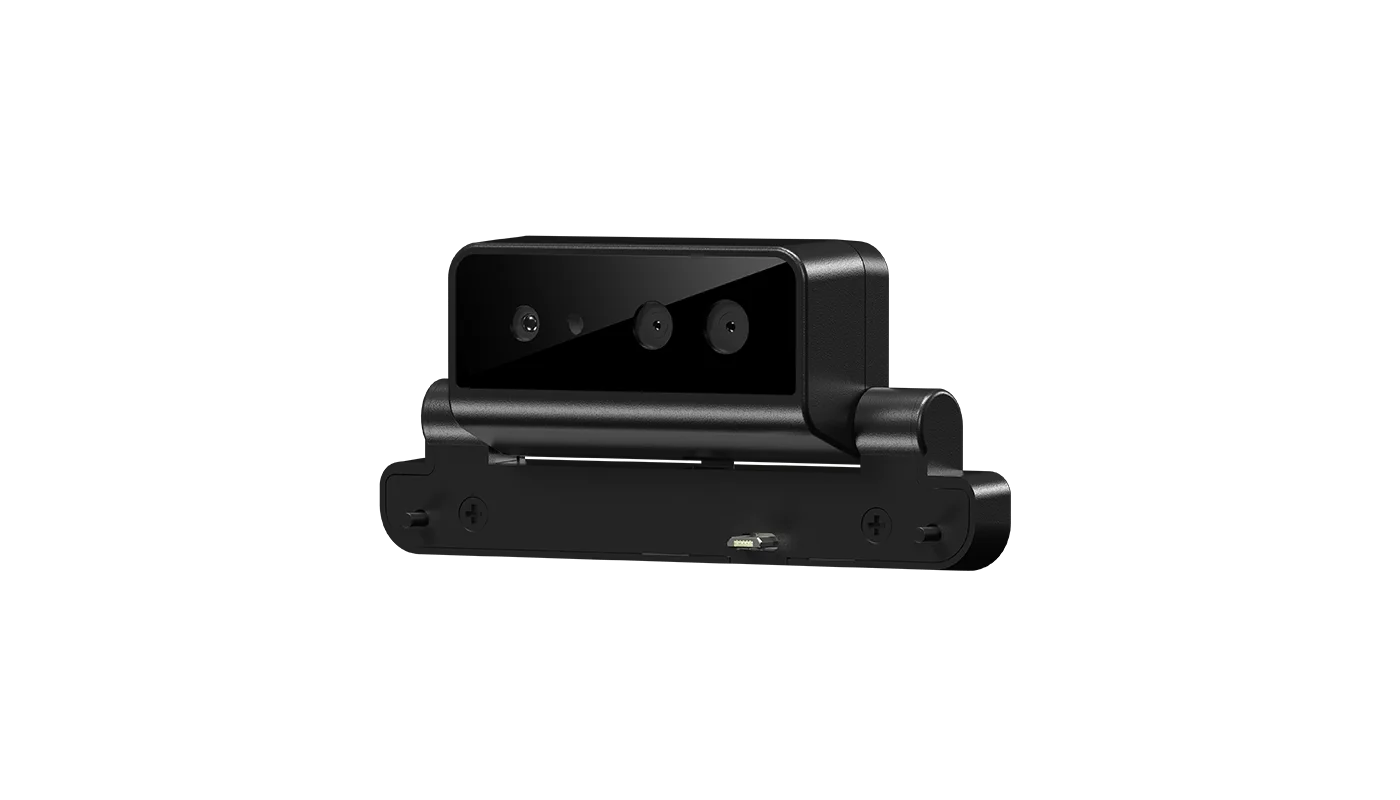

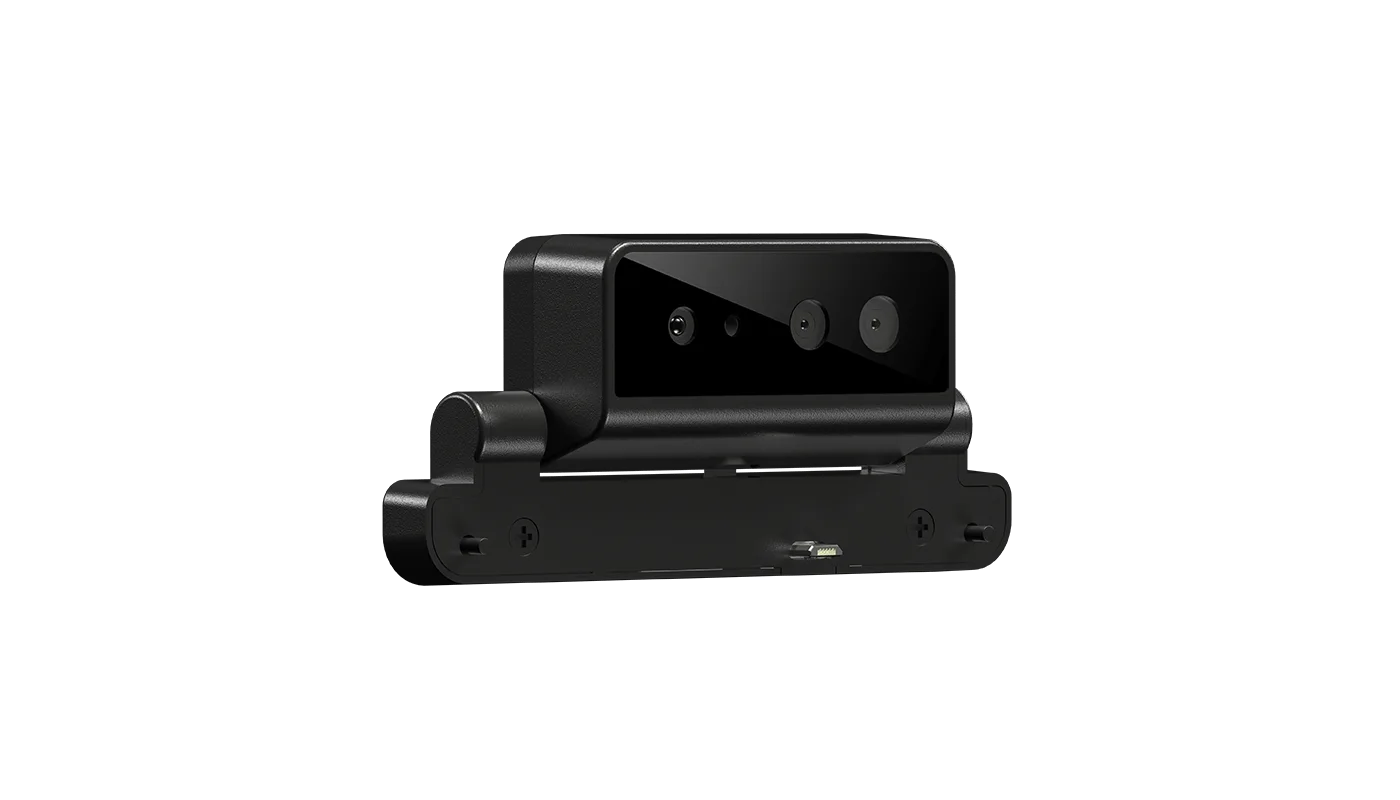

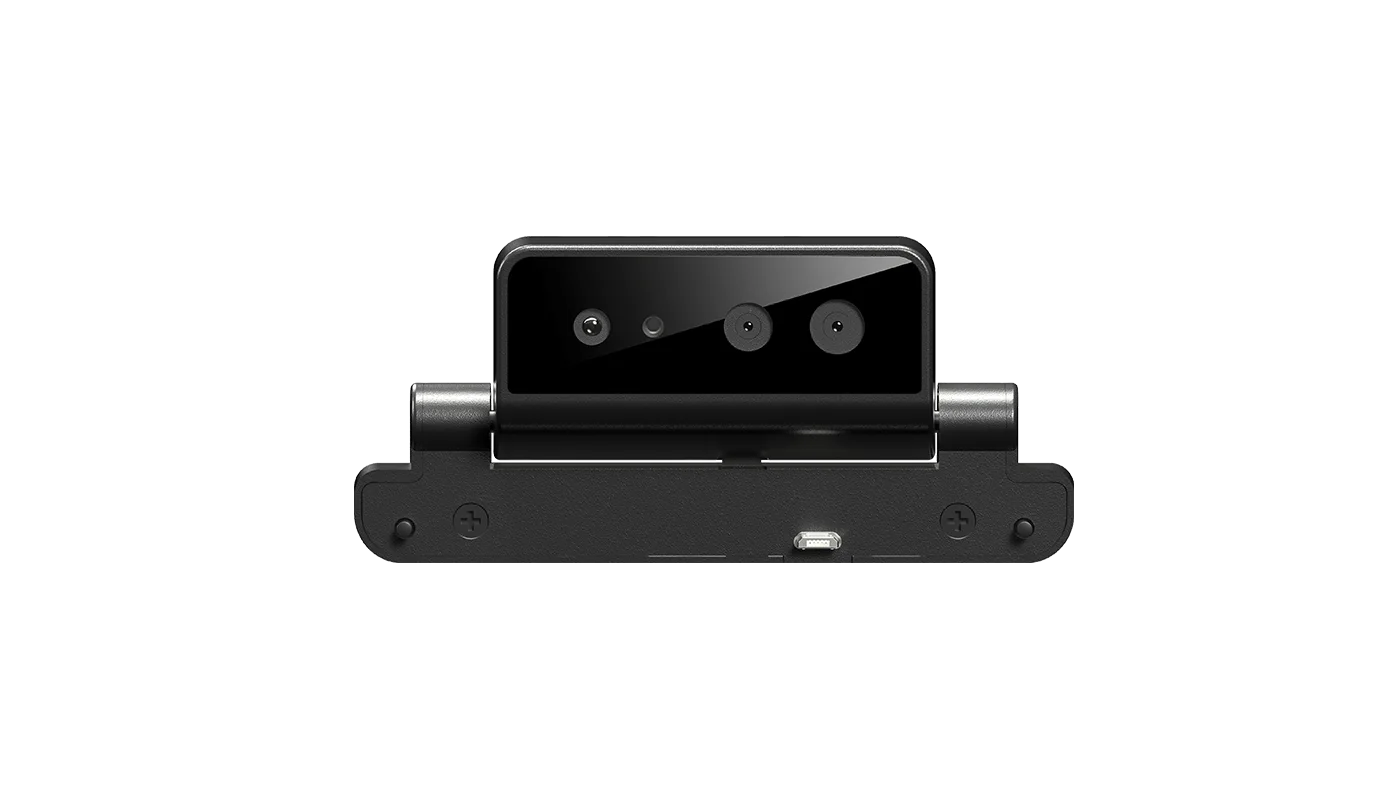

Elo Touch Elo Edge Connect 3D Camera
With the rise of consumer demand for contactless ordering and payments, the Elo Edge Connect™ 3D camera can support rapid facial recognition and authentication capability. Designed to seamlessly integ
Overview
With the rise of consumer demand for contactless ordering and payments, the Elo Edge Connect™ 3D camera can support rapid facial recognition and authentication capability. Designed to seamlessly integrate with a variety of Elo interactive displays, the sleek, compact form factor provides the depth sensing you need, making it well suited for self-service, access control and augmented reality and virtual reality applications.
- With 3D technology, businesses can gain an extra layer of security with anti-spoofing and liveness detection capability to enhance biometric verification over a 2D camera. By using a projector to cast an infrared light pattern onto an object, the camera captures the reflections and adds a layer of depth to an image to create a 3D visual – delivering financial-grade security capability.
- Whether you want to verify a known identity, scan items at checkout or create immersive experiences, the 3D camera can do it all, making it well suited for almost any vertical.

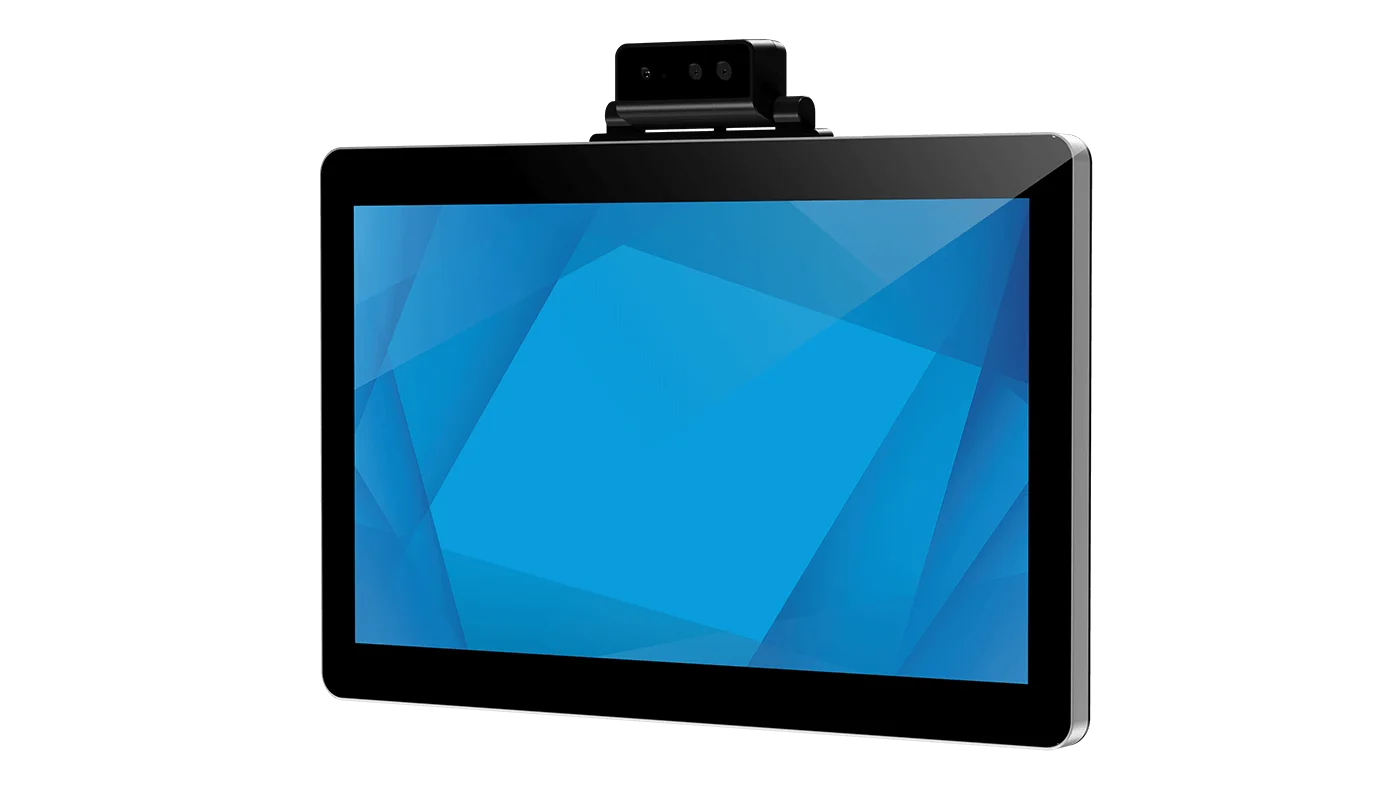

- Built on the Elo Edge Connect platform, the 3D Camera can be easily integrated with a variety of Elo touchscreens. Simply attach, orient the camera and get started.
- Facial Recognition Offer up customized content that is tailored to a specific customers’ preferences. From showing favorite menu items to adding promotional offers for frequently purchased items, with facial recognition you can provide a deeper connection to customers to increase their satisfaction with your brand.
- Facial Authentication From customer loyalty to checkout, the 3D camera can help retailers curate frictionless customer experiences. By validating a known identity via facial authentication, you can enable account access to customize content based on favorite items and initiate secure payment.
Specifications
Technical
- Part Number(s)
- Black - E134699; White - E453940
- Enclosure Color
- White or Black
- Range
- 0.82 ft to 4.92 ft / 0.25 m to 1.5 m
- Rating
- Class 1 Laser Product
- Frame Rate
- Depth Resolution Frame Rate; 1280 x 800 @ 30fps; 640 x 400 @ 60fps; RGB Resolution Frame Rate; 1920 x 1080 @ 30fps; 1280 x 720 @ 30fps
- Field of View
- Depth FOV - H67.9° V45.3° D78° ±3.0°; RGB FOV - H71.5° V56.7° D84°
- Input Voltage
- 5.0VDC
- Dimensions
- 4.7" x 2.1" x 0.8" / 119.48 mm x 53.45 mm x 20.28 mm
- Shipping Box Dimensions
- 6.9" x 4.5" x 2.7" / 175 mm x 114 mm x 69 mm
- Weight (Unpackaged)
- 0.2 lb / 0.09 kg
- Weight (Packaged)
- 0.4 lb / 0.183 kg
- Operating Temperature
- 10°C to 40°C / 50°F to 104°F
- Storage Temperature
- 0°C to 50°C / 32°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 90%
- Warranty
- 2-year
- What's in the Box
- 3D Camera; 2 Mounting screws; 2 Mylar screw covers; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
