Elo Touch · Accessory

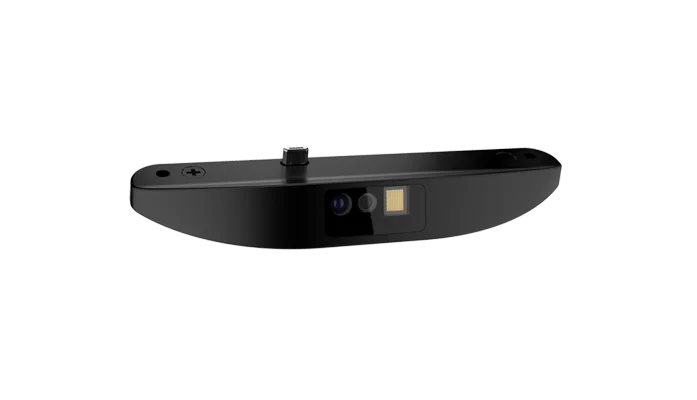

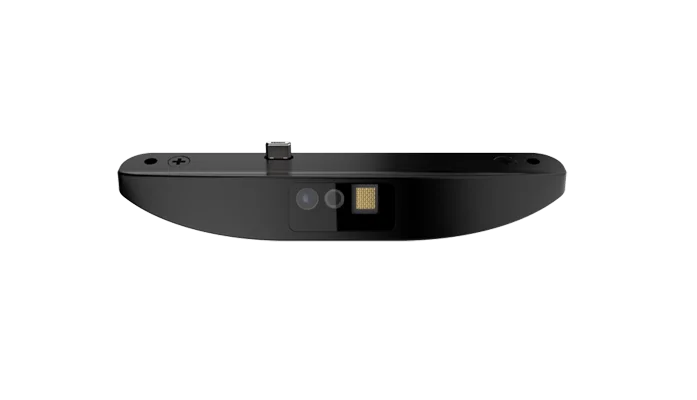

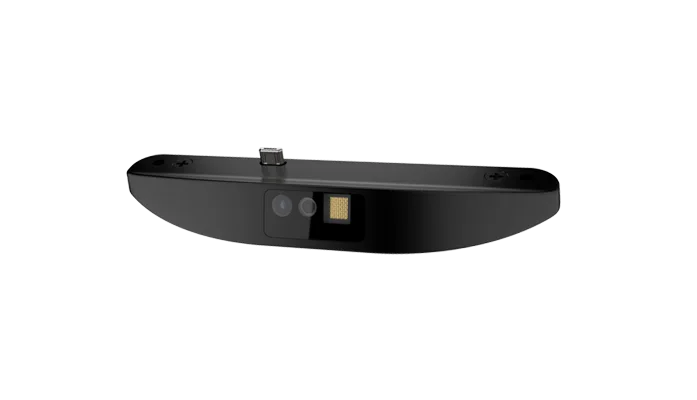

Elo Touch Elo Edge Connect 2D Barcode Scanner (SE4107 & SE4720)
Improve self-service and price-checker applications with the Elo Edge Connect 2D Barcode Scanner. This fast, hands-free device provides rapid and accurate scanning of barcodes, including linear barcod
Overview
Improve self-service and price-checker applications with the Elo Edge Connect 2D Barcode Scanner. This fast, hands-free device provides rapid and accurate scanning of barcodes, including linear barcodes and QR codes. Whether on paper, etched into a product or on a mobile screen, the reader can return quick, reliable results.
- Built on the Elo Edge Connect platform, the 2D Barcode Scanner can be easily integrated with a variety of Elo touchscreens. Simply attach and get started.
- Our modular design provides our customers with the building blocks to configure a multitude of solutions - making it easy to deploy a variety of solutions from price checkers and self-checkout to visitor management. Start changing the way your customers and employees interact in-store and at work by deploying a new generation of interactive technologies.
- Elo’s price-checking solutions deliver exactly what the customer wants, when they want it. By pairing Elo’s 2D Barcode Scanner with an Elo interactive display, retailers can offer price checking plus in-depth product information, virtual customer service, endless aisle and related item recommendations, wayfinding, BOPIS, loyalty and assisted selling.
- Streamline visitor management by allowing guests to scan barcodes and QR codes on their badges or personal devices to gain entry. From hospitals to corporate offices, secured, contactless entry solutions simplify employee and guest screening and automate access. With Elo’s modular platform and wide range of Edge Connect accessories, organizations can easily configure a visitor management solution to meet their access control requirements.
- Self-service allows customers to take control of their experience while limiting close interaction with employees. With Elo’s 2D Barcode Scanner, customers can scan products and coupons to add to their cart as well as scan their personal device to add loyalty discounts and process secure payment with a mobile wallet. With Elo, it’s easy to configure and deploy the self-checkout kiosks businesses need.
Specifications
Technical
- Part Number(s)
- SE4720, Black - E384627; SE4720, White (MTO) - E454122; SE4107, Black - E245047; SE4107, White (MTO) - E454318
- Enclosure Color
- White or Black
- Barcode Engine
- SE4720; SE4107
- Standard Configuration
- SNAPI with Imaging Interface; Presentation Mode
- Supported Terminal Modes
- SNAPI; HID; CDC; OPOS / IBM Handheld; IBM Tabletop
- Resolution
- SE4720: 1280 x 800; SE4107: 1280 x 960
- Illumination & Aiming
- LED illumination, LED dot aimer
- Ideal Scan Distance
- SE4720: 1.6" to 30" / 4.06 cm to 76.2 cm; SE4107: 1.2" - 19.5" / 3.05 cm - 49.5 cm; Depends on barcode quality, size and environment conditions
- Supported Symbologies
- 1D symbologies: All major 1D; 2D symbologies: PDF417, MicroPDF417, Data Matrix, MaxiCode*, QR Code, Micro QR Code, Aztec, Grid Matrix*, DotCode*, Macro PDF; Postal*: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), Mailmark.; *Default setting may be disabled
- Viewing Angle
- SE4720: Horizontal: 48°, Vertical: 30°; SE4107: Horizontal: 44.5°, Vertical: 33.5°
- Beeper Support
- Yes
- Weight (Unpackaged)
- SE4720: 0.071 lbs / 0.032 kg; SE4107: 0.049 lbs / 0.022 kg
- Weight (Packaged)
- SE4720: 0.291 lbs / 0.132 kg; SE4107: 0.26 lbs / 0.12 kg
- Dimensions
- SE4720: 4.67'' x 1.40'' x 0.81'' / 118.5 mm x 35.46 mm x 20.60 mm; SE4107: 4.67" x 1.05" x 0.76" / 118.5 mm x 26.6 mm x 19.1 mm
- Shipping Box Dimensions
- 6.89'' x 4.49'' x 2.72'' / 175 mm x 114 mm x 69 mm
- Operating Temperature
- 10°C to 40°C / 50°F to 104°F
- Storage Temperature
- 0°C to 50°C / 32°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 90%
- What's in the Box
- 2D Barcode Scanner; 2 Mounting screws; QIG
- Warranty
- 2-year
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
