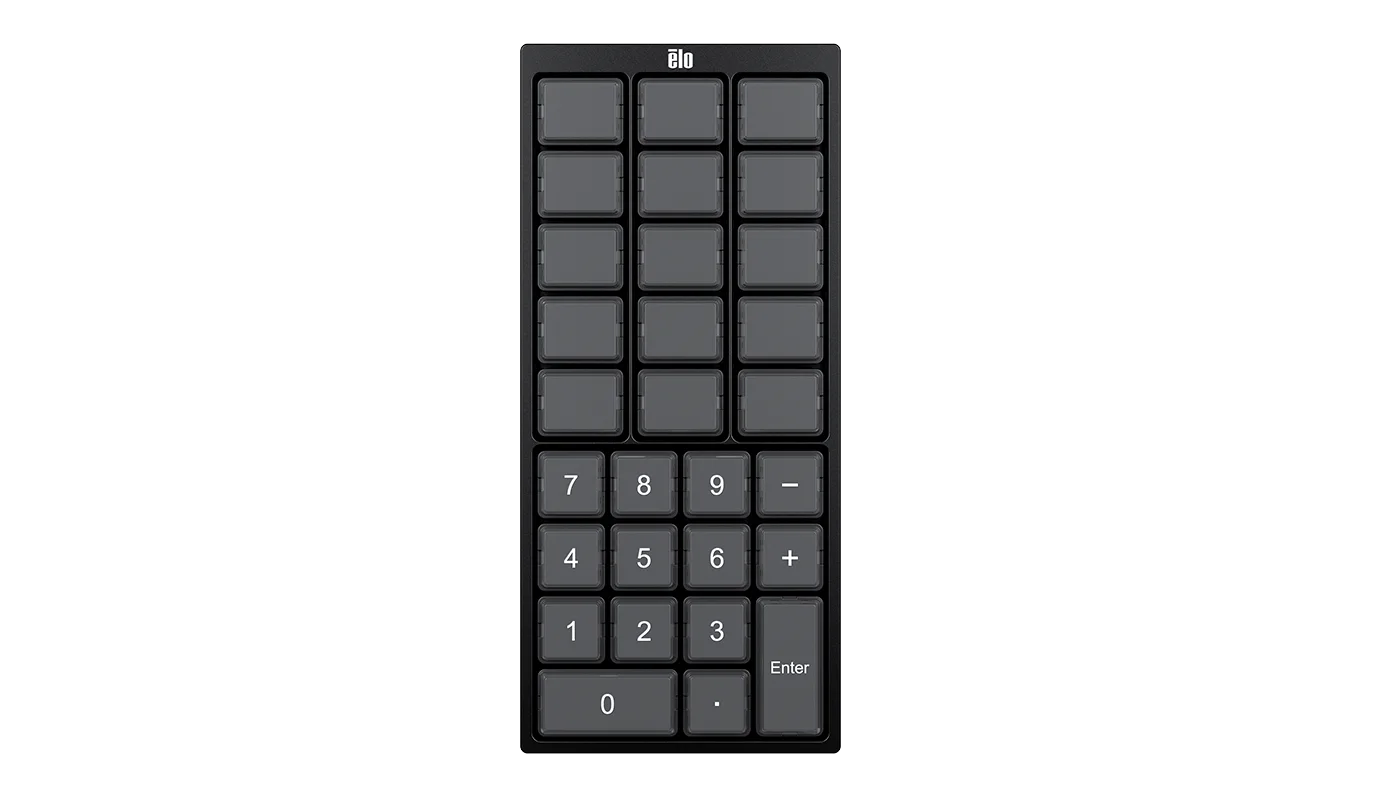

Elo Touch Elo Edge Connect 10 Key Keypad
The Elo Edge Connect 10-key keypad is built for high-volume, numeric-intensive environments, enabling fast, accurate entry of PLUs, prices, and quantities. Its tactile, ergonomic layout streamlines wo
Overview

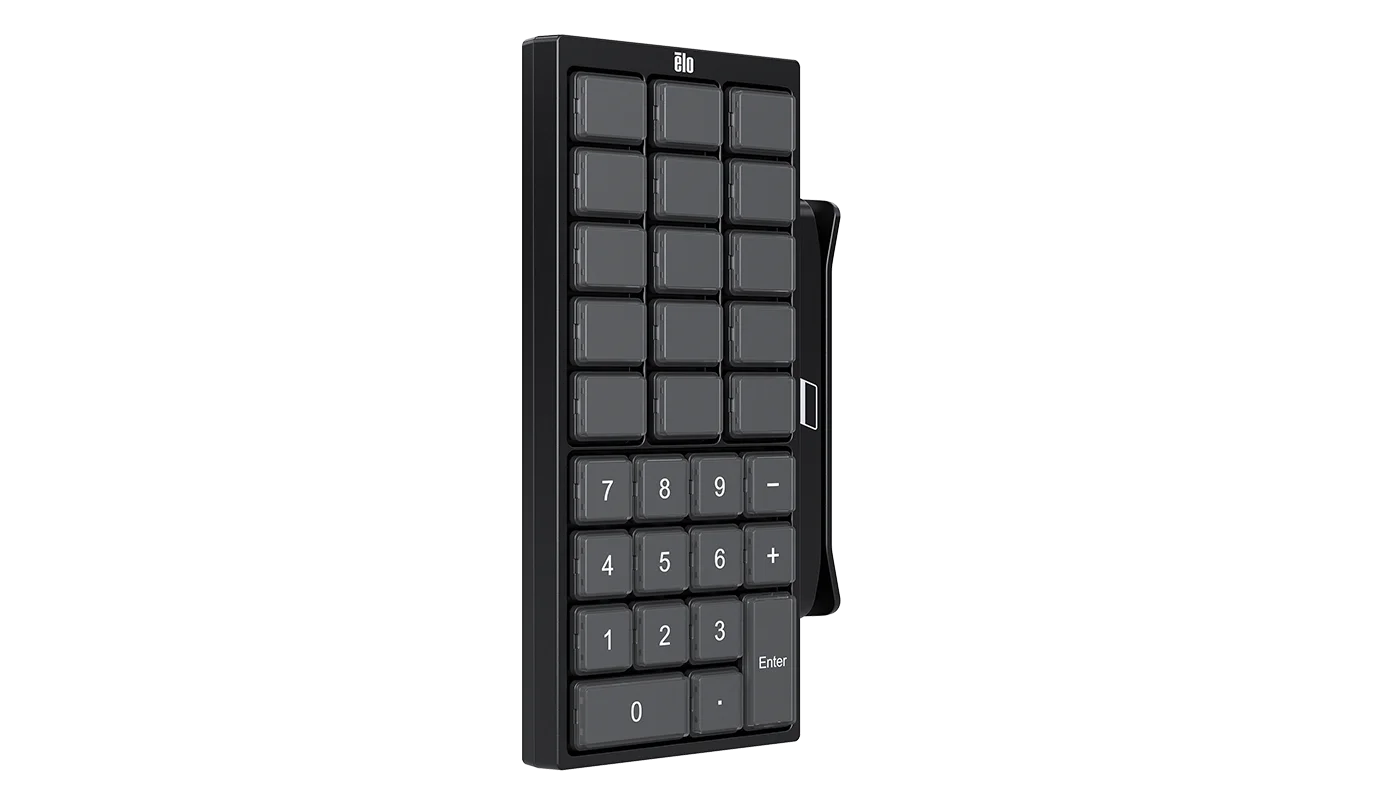

The Elo Edge Connect 10-key keypad is built for high-volume, numeric-intensive environments, enabling fast, accurate entry of PLUs, prices, and quantities. Its tactile, ergonomic layout streamlines workflows, while wired connectivity ensures a secure, uninterrupted, low-latency input. Designed for seamless integration with POS systems and other data-entry applications, the 10-Key delivers durable performance, shift after shift, wherever numeric accuracy and efficiency are critical.
- The keypad offers 15 programmable keys to support custom workflows, application-specific shortcuts, and the ability to lock or unlock the device enabling secure access control.

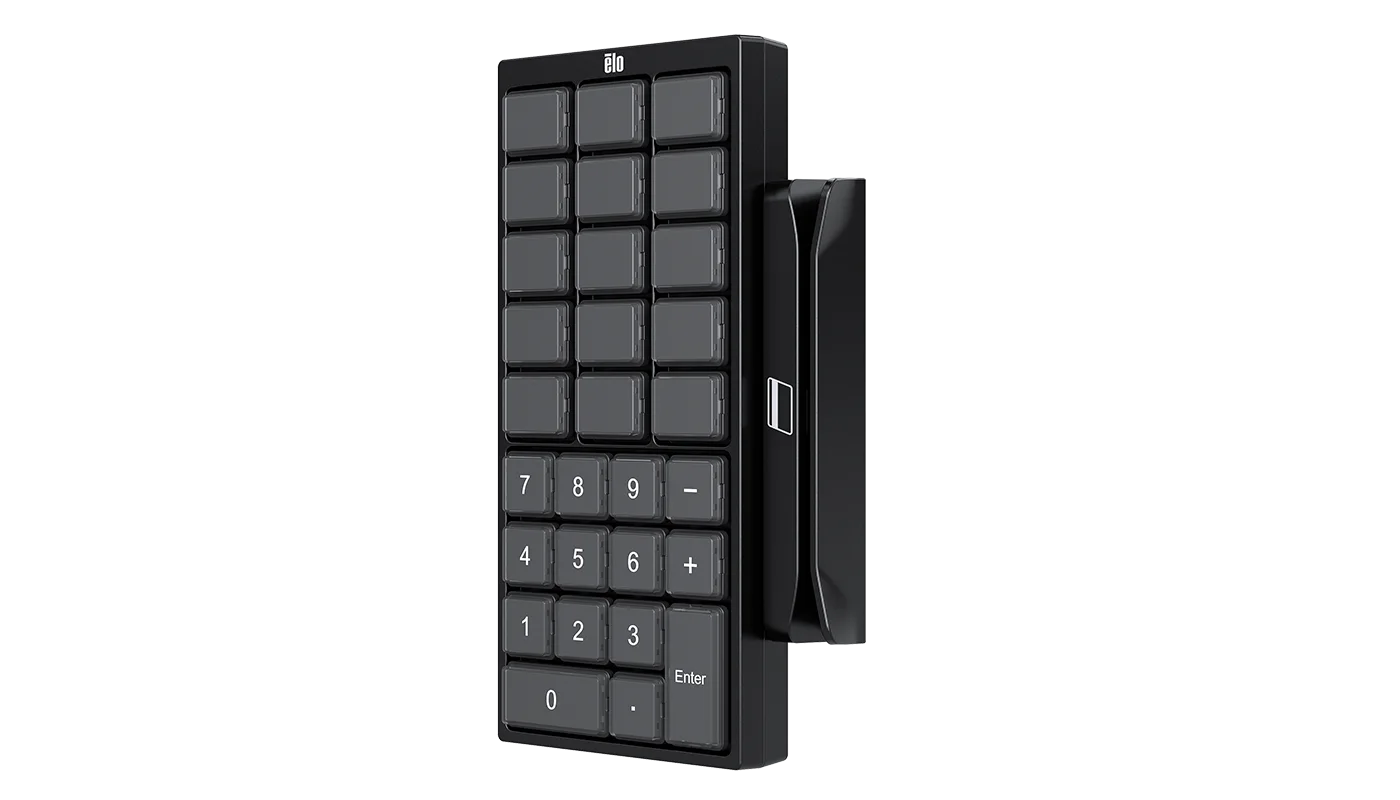

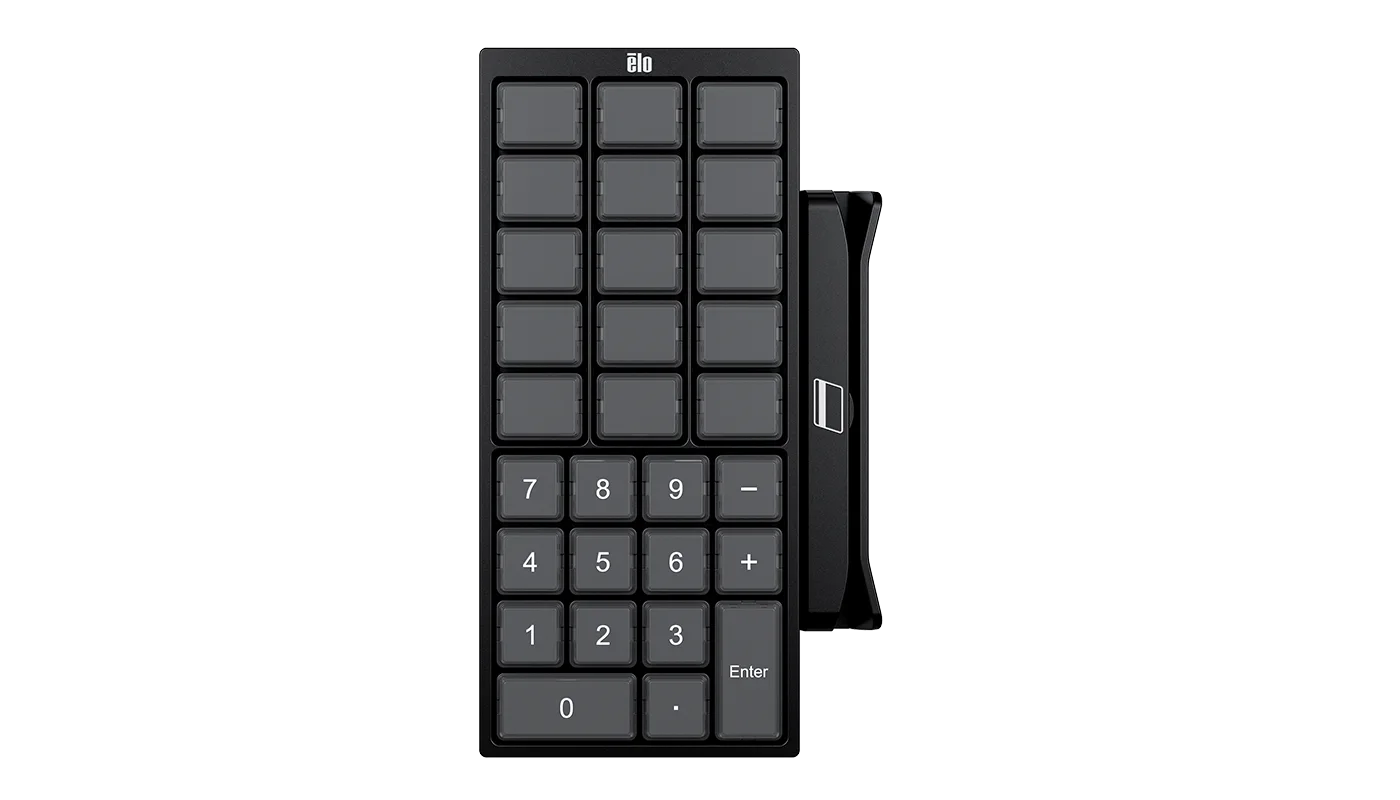

- An integrated Edge Connect port is positioned on the right side of the keypad, allowing the connection of additional Elo Edge Connect™ peripherals without occupying a separate device port.

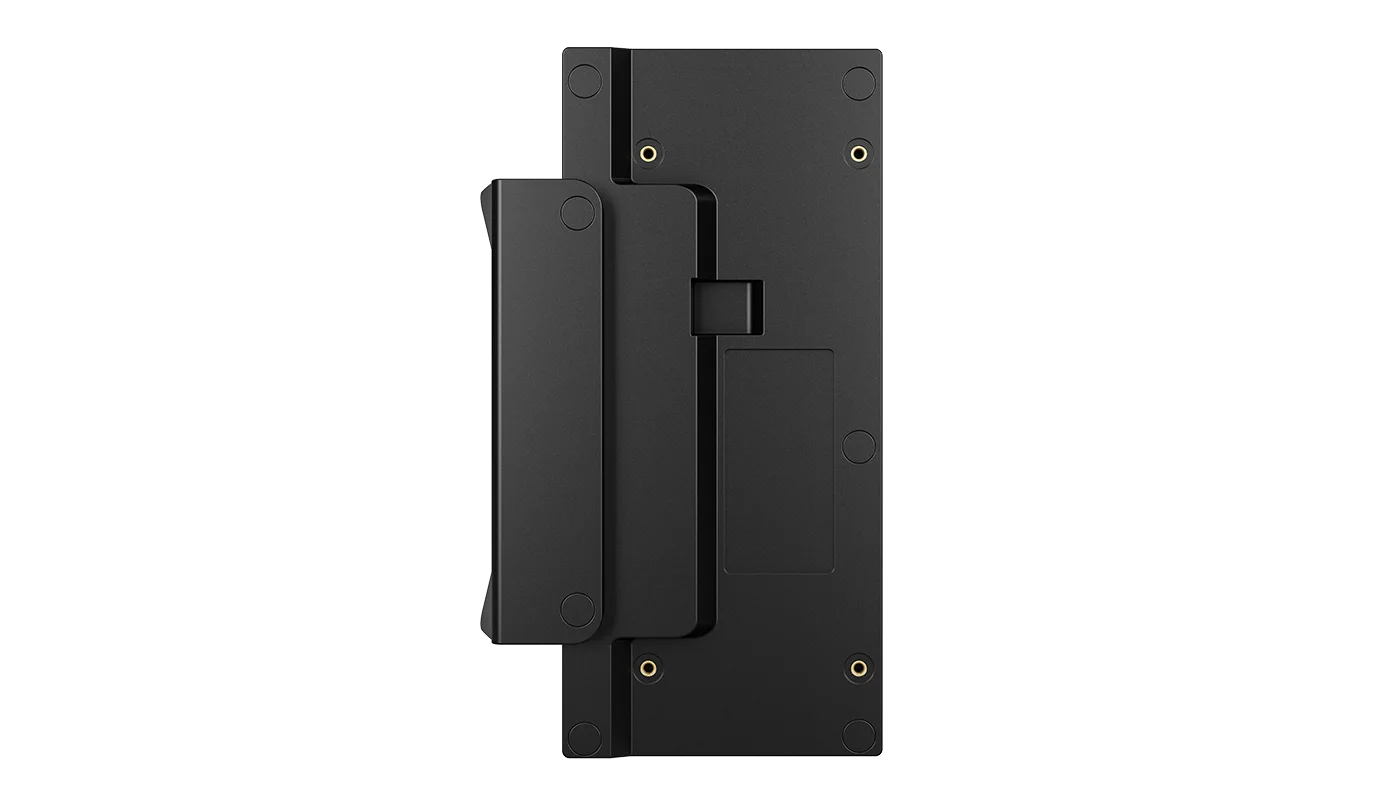

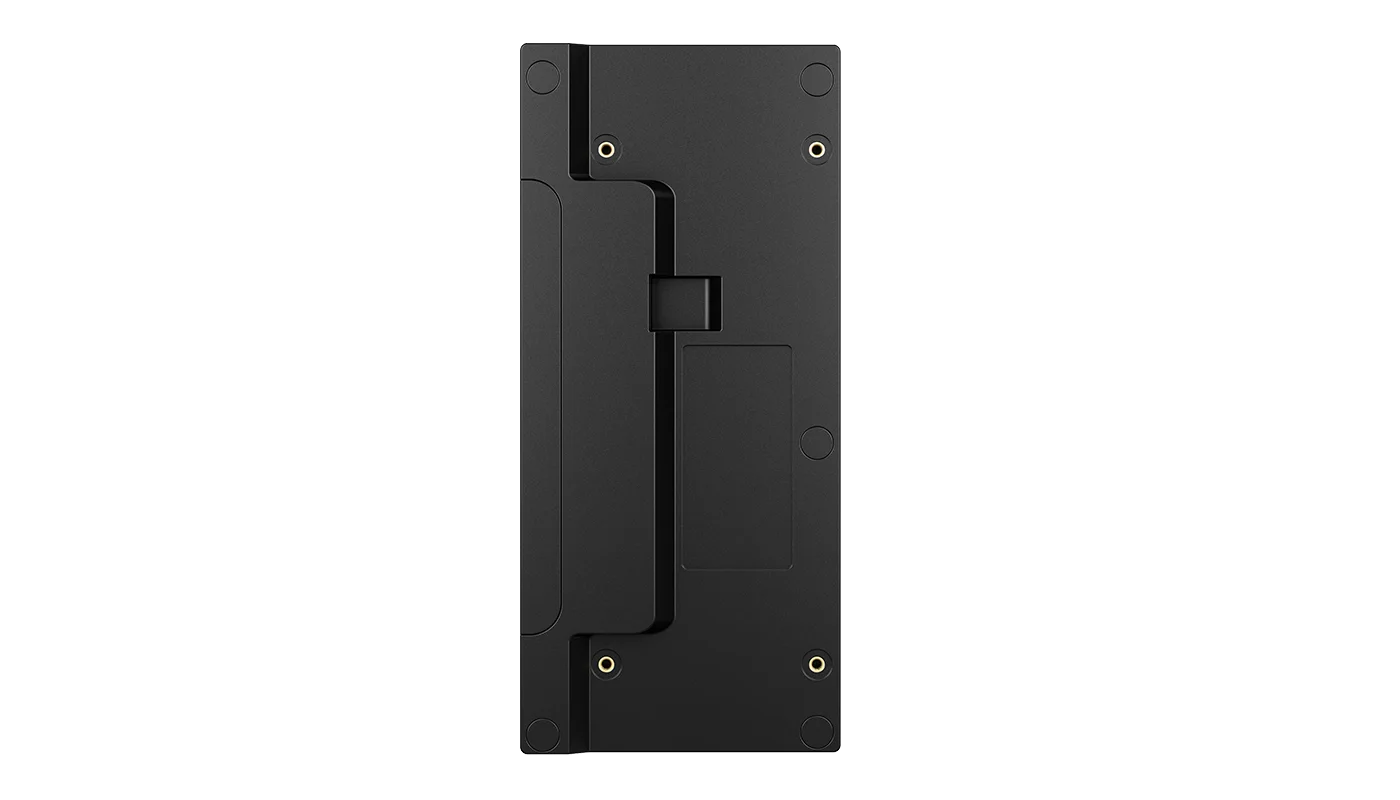

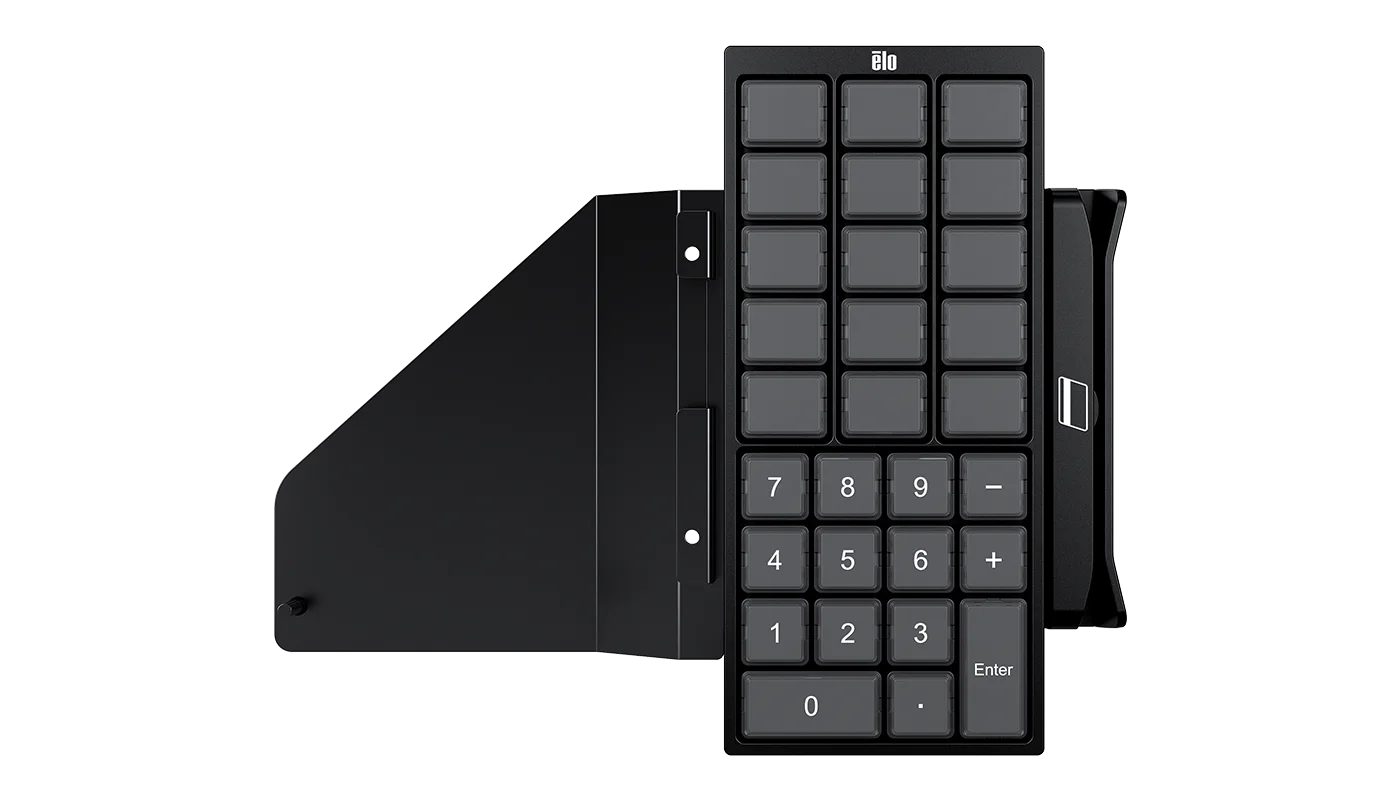

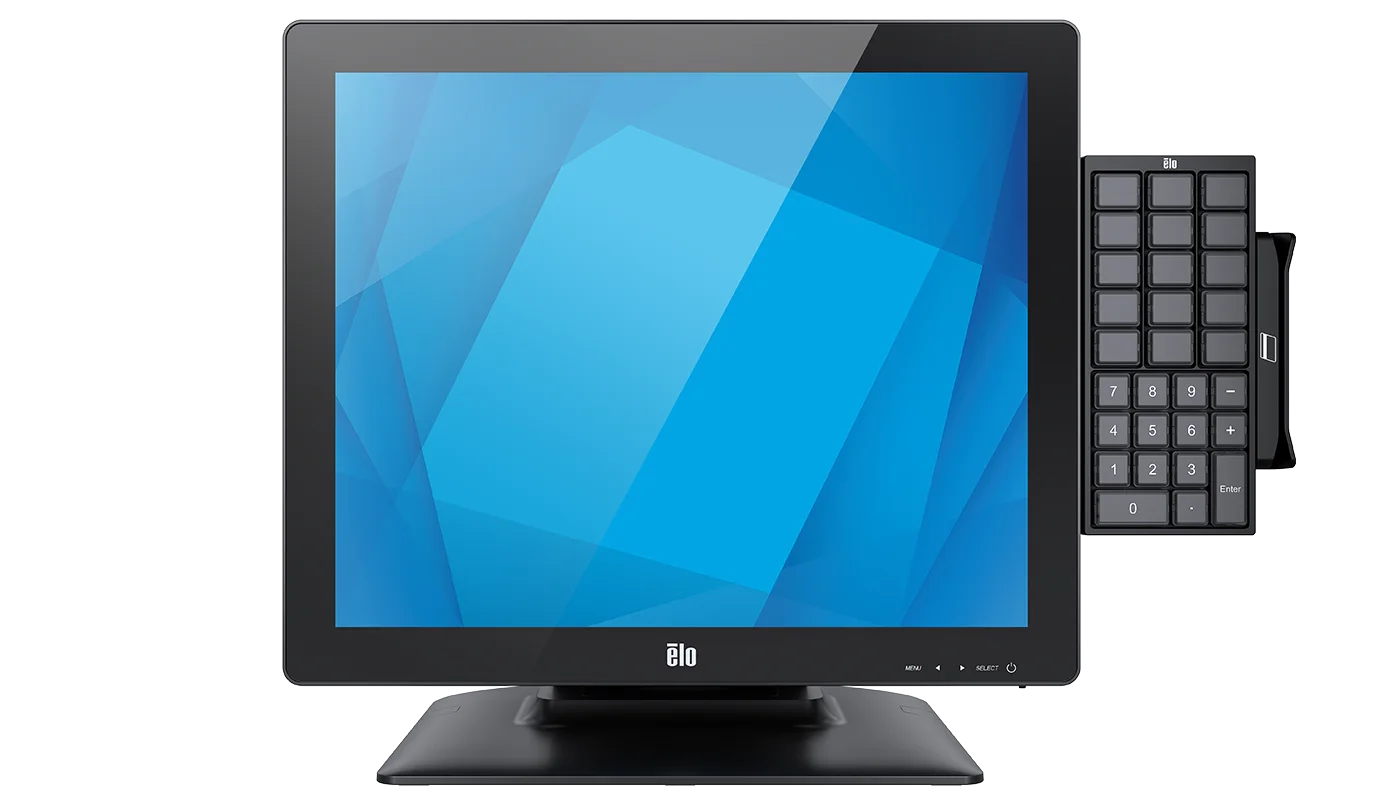

- The keypad securely mounts to the edge and rear of the display ensuring stability during fast and high-volume operation.
Specifications
Technical
- Part Number(s)
- E541676
- Enclosure Color
- Black
- Compatibility
- Touchscreen Monitors - 1523L, 1723L; Note: Need to use the different metal bracket.
- Power Supply
- USB Power
- Compliant
- USB2.0 Full-Speed
- Interface
- Wafer Connect USB, Pitch=1.25mm; Cable Length=235mm
- Supported Operating Systems
- Android 10/12/14; Windows 10/11; Linux 22.04
- Dimensions
- 7.37" x 3.35" x 0.98" / 187.3 mm x 85 mm x 24.8 mm
- Shipping Box Dimensions
- 9.53" x 9.73v x 3.19" / 242 x mm x 247 mm x 81 mm
- Weight (Unpackaged)
- 0.49 lbs / 222g
- Weight (Packaged)
- 2.86 lbs / 1300g
- Operating Temperature
- -0° C to 40° C / 32° F to 104° F
- Storage Temperature
- -20° C to 50° C / -4° F to 122° F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Regulatory approvals and declarations
- CE, FCC/IC
- Warranty
- 2-year
- What's in the Box
- 1x 10 Key Keypad with integration USB wire; 1x Bracket for 1523L; 1x Bracket for 1723L; 1x QIG; 1x Screw, M4x18 (in the “A”) - for mounting the Bracket to 1523 or 1723 monitors; 2x Screw, M3x6 (in the “B”) - for mounting the MSR Kit; 4x Screw, M3x7 (in the “C”) - for mounting the Bracket to keypad; 1x Key cap/tip removing tool (in the “D”)
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
