Elo Touch · Accessory
Elo Touch Elo Backpack with Intel
Enterprise-grade Mini PC
- Operating systemNo OS; Windows 11 IoT Enterprise LTSC 64-bit
Overview
The Elo Backpack with Intel delivers a powerful, enterprise-grade mini PC complete with Windows 11 or no OS, powerful Intel processors, WiFi 6E and connectivity to satisfy all your needs. From digital signage and self-service kiosks to kitchen display systems (KDS) and automation controls, scaling Elo's commercial Windows platform across sizes and form factors has never been easier.
- Whether the Elo Backpack is in a kiosk or mounted behind a display, you can easily turn the device on or off remotely.
- Purpose-built to accommodate compact spaces, the Elo Backpack offers a small footprint in both size and weight.
- Easily secure to any counter or in a kiosk in a snap with the built-in VESA mount.

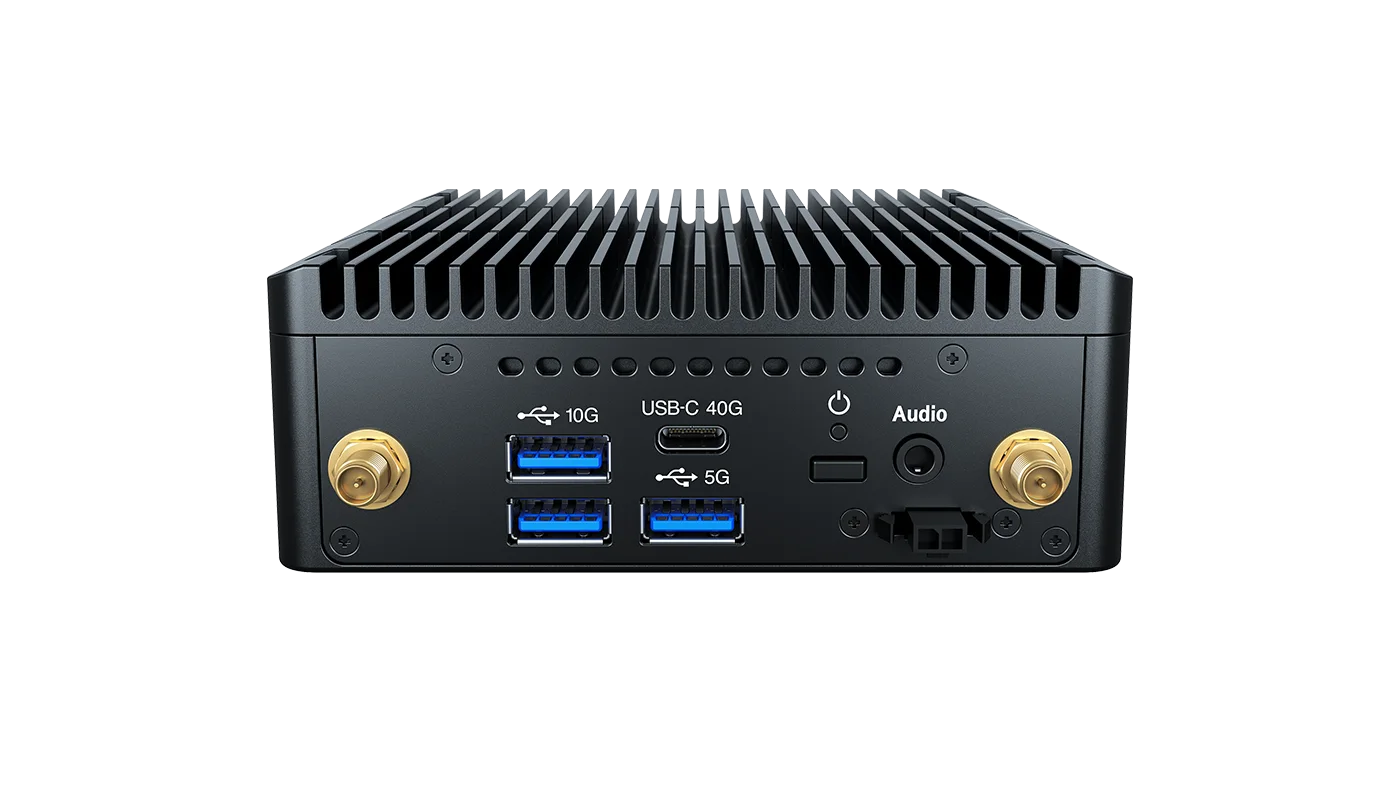

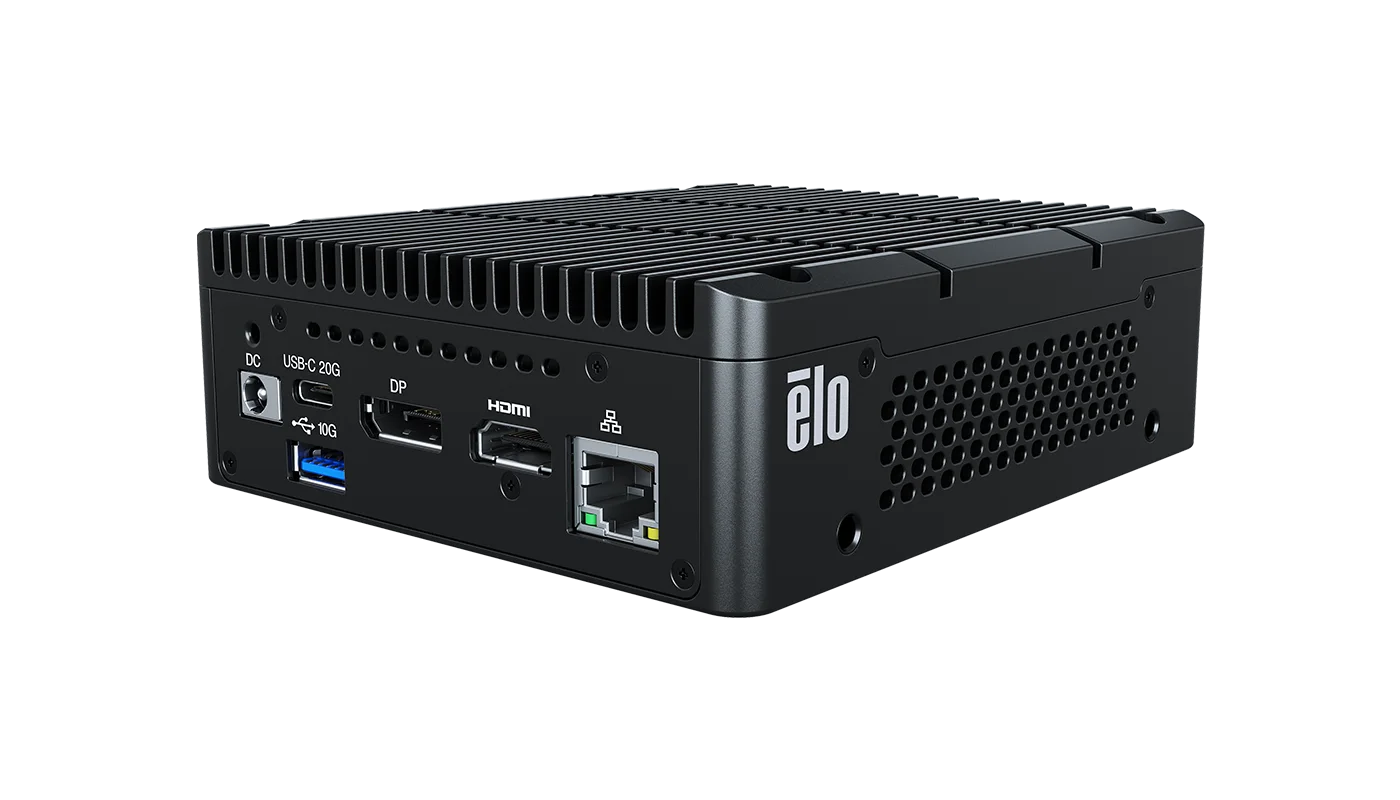

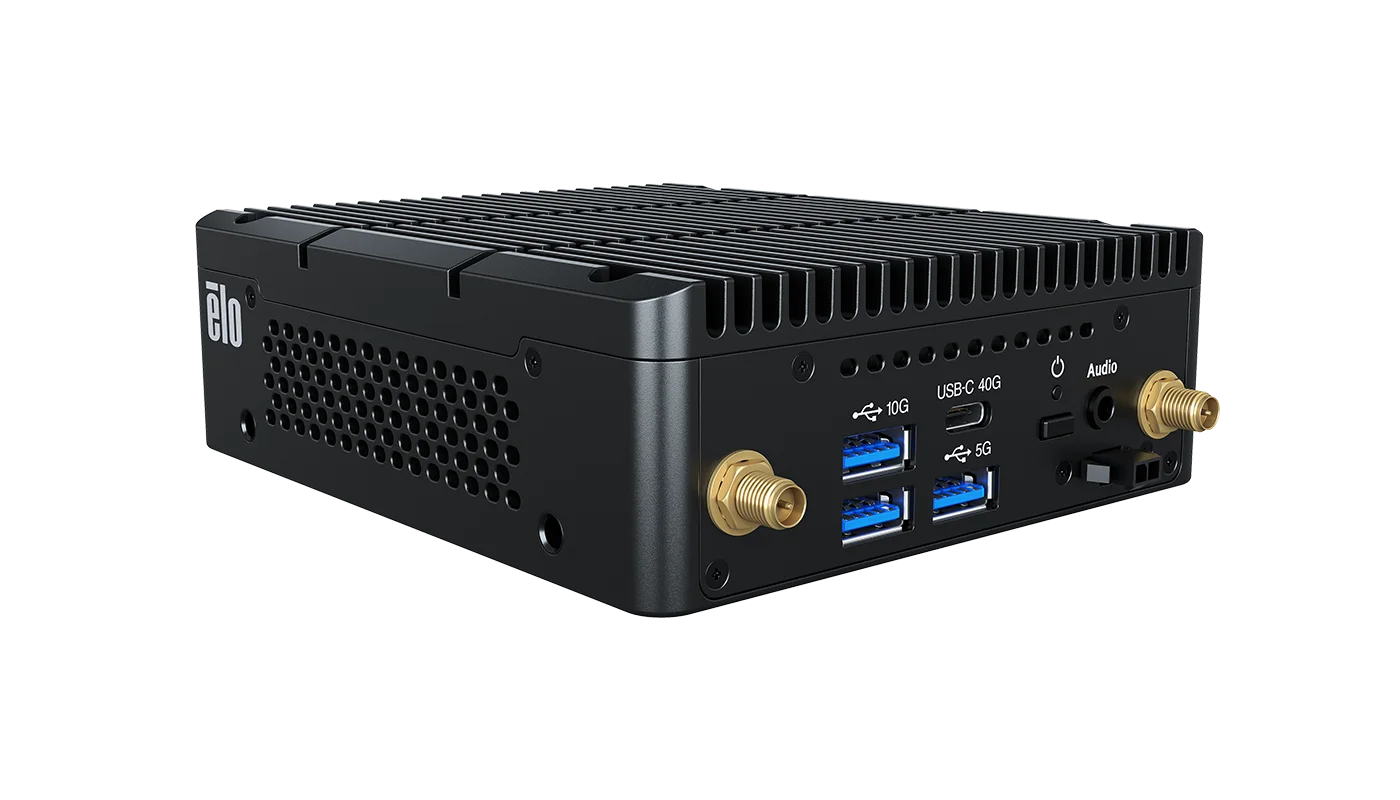

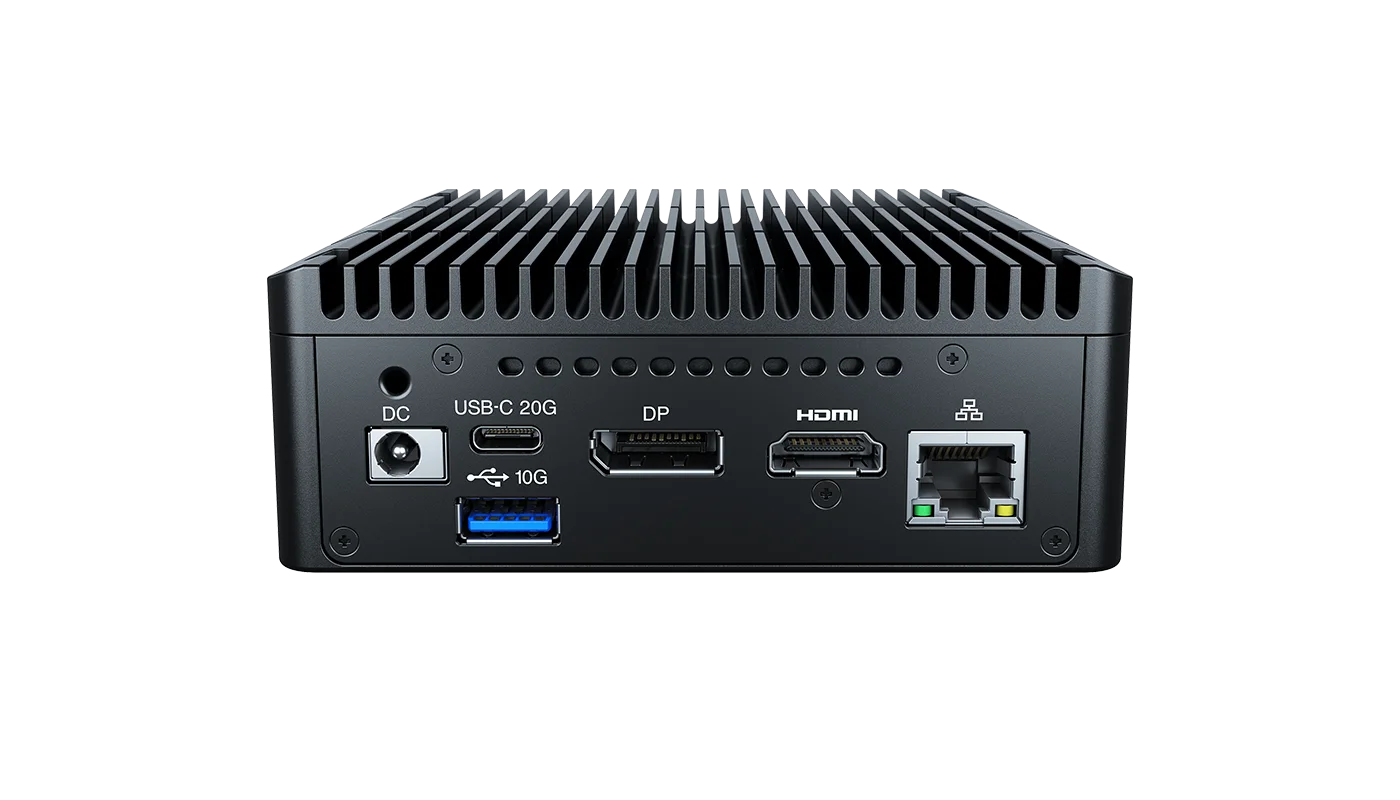

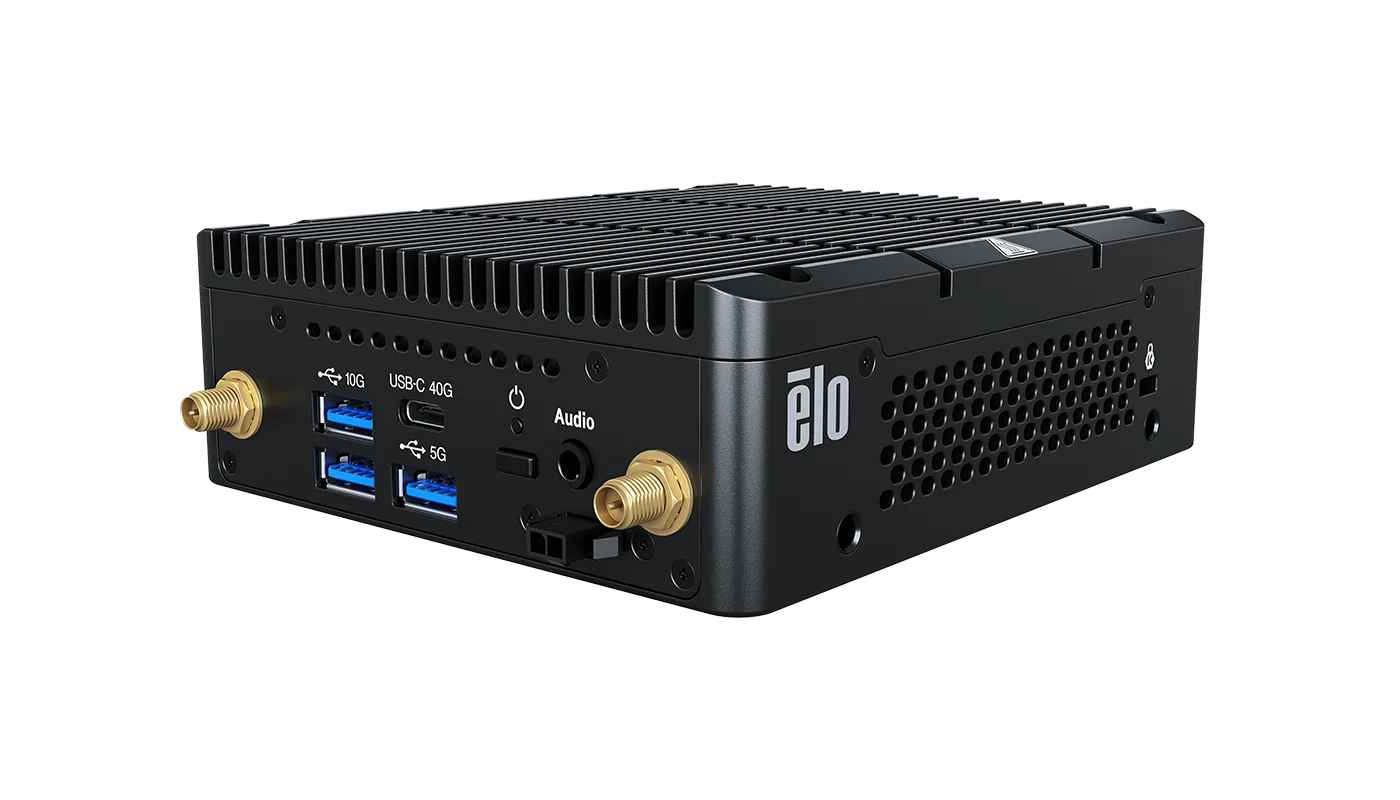

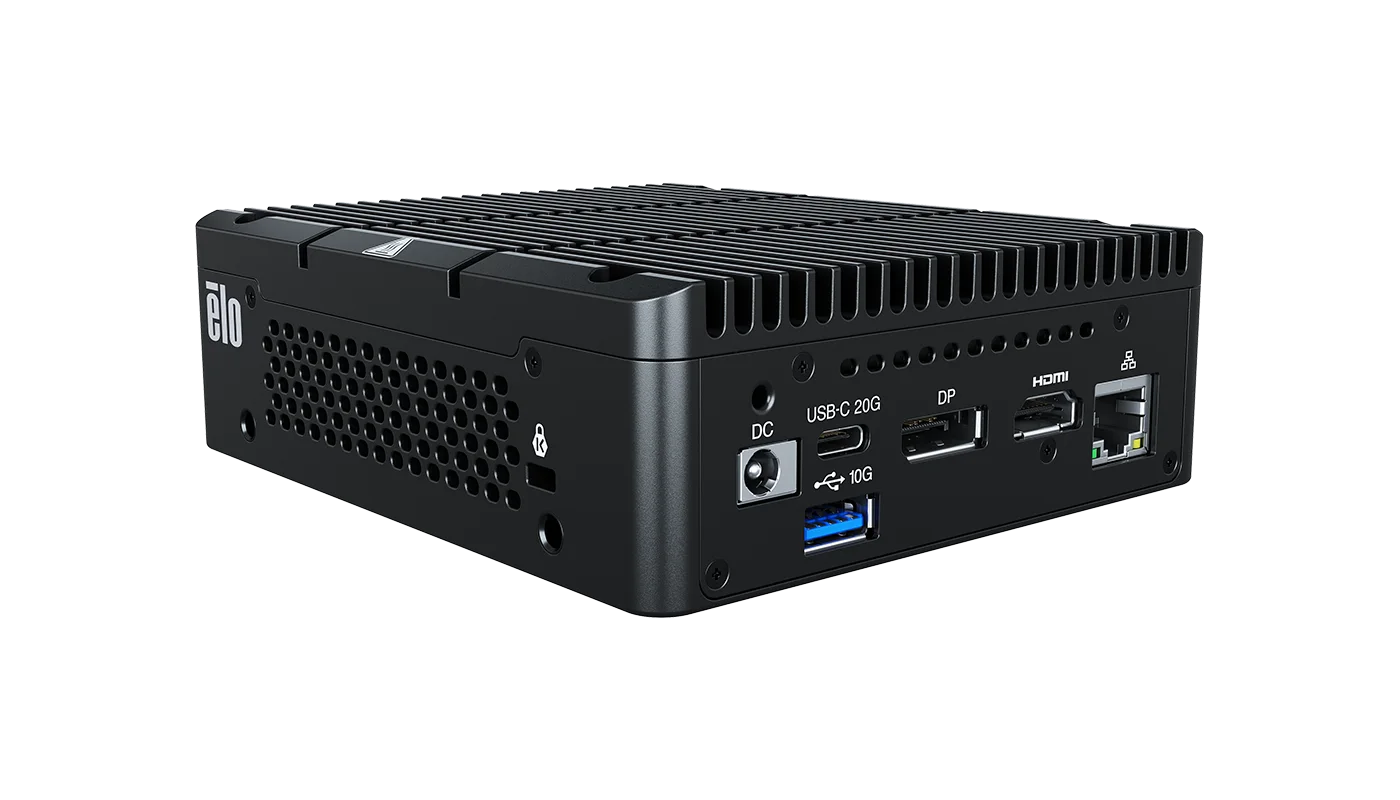

- The Elo Backpack covers all your connectivity needs with HDMI, Display Port, Ethernet, 4x USB, 2x full-function USB-C, Wi-Fi and Bluetooth.
- Available in Windows 11 and No-OS versions, the Elo Backpack turns any Elo touchscreen—from 7-65 inches—into a flexible, fully powered interactive solution.
Best for: Conference Room Technology · Conference Room Accessories · Price Checkers · Intel Price Checkers
Specifications
Technical
- Part Number(s)
- N97, No OS, 8GB RAM, 128GB SSD - E345165; N97, Win11, 8GB RAM, 128GB SSD - E345569; i3, No OS, 16GB RAM, 256GB SSD - E345966; i3, Win11, 16GB RAM, 256GB SSD - E346150; i5, No OS, 16GB RAM, 256GB SSD - E346334; i5, Win11, 16GB RAM, 256GB SSD - E346532; Looking for a different configuration? Please contact us .
- Enclosure Color
- Black
- Processor
- Intel Processor N97 (6 MB Intel Smart Cache, up to 3.6 GHz by Intel Turbo Boost Technology 3.0); Intel Core 3 Processor N355 (6 MB Intel Smart Cache, up to 3.9 GHz by Intel Turbo Boost Technology 3.0); Intel Core Ultra 5 Processor 135U (12 MB Intel Smart Cache, up to 4.4 GHz by Intel Turbo Boost Technology 3.0) Intel vPro Support
- Graphics
- N97: Intel UHD Graphics; i3 & i5: Intel Graphics
- BIOS
- AMI; Note: Secure Boot setting default is enabled
- Memory (RAM)
- N97: 8GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum); i3: 16GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum); i5: 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum 1 on 2 slots) 2; 1 Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600.; 2 Check brand of the memory included in your unit before purchasing the memory kit.
- Storage
- N97: 128GB M.2 PCIe (NVMe) SSD 80 TBW; i3 & i5: 256GB M.2 PCIe (NVMe) SSD 160 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- TPM
- 2.0
- Active Management Technology (AMT)
- N97 & i3: N/A; i5: Intel Active Management Technology
- I/O Ports
- N97 & i3:; 1x HDMI; 1x Display Port*; 1 x LAN RJ45 (Gigabit); 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 1 x USB 2.0; 2 x Full-function USB-C (Power up to 15W, PD 5V-3A, USB 3.2 Gen 2x1, Display Port); i5:; 1x HDMI; 1x Display Port; 1 x LAN RJ45 (Gigabit); 3 x USB 3.2 Gen 2 + 1x USB 3.2 Gen 1; 1 x Full-function USB-C (Power up to 15W, PD 5V-3A, USB 4 Gen 3x2, Display Port); 1 x Full-function USB-C (Power up to 15W, PD 5V-3A, USB 3.2 Gen 2x2, Display Port); *Note: N97 & i3 models support a maximum of three simultaneous displays.
- Wireless
- 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
- Bluetooth
- Bluetooth 5.3
- Antenna
- 2T2R design with External SMA connector
- Audio Ports
- 1x 3.5 mm headset jack
- OS
- No OS; Windows 11 IoT Enterprise LTSC 64-bit
- Languages
- Windows 10 - 36 Language groups
- Power Supply
- External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 90W
- Power Consumption (Typical)
- Without Peripherals*; On N97: 21W; On i3: 25.5W; On i5: 26W; Sleep:
- Dimensions
- 5.48" x 4.48" x 1.72" / 139.1 mm x 113.75 mm x 43.66 mm
- Shipping Box Dimensions
- Individual System: 14.92" x 8.15" x 3.23" / 379 mm x 207 mm x 82 mm; 6 systems/carton: 17.36" x 10.63" x 16.26" / 441 mm x 270 mm x 413 mm
- Weight (Unpackaged)
- 2.14 lbs / 0.97 kg
- Weight (Packaged)
- Individual System: 5.01 lbs / 2.27 kg; 6 systems/carton: 32.08 lbs / 14.55 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F; Note: The thermal report passes with airflow 0.5m/s + CPU Minimum assured power condition. To assure proper airflow, please remove the protective film on the sides of the machine before activating the unit.
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F; Note: The thermal report passes with airflow 0.5m/s + CPU Minimum assured power condition. To assure proper airflow, please remove the protective film on the sides of the machine before activating the unit.
- Humidity
- Operating: 10% to 90%; Storage: 0% to 95% (38.7°C max wet bulb temperature)
- Regulatory approvals and declarations
- Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC
- Real-Time Clock
- CR2450 lithium metal battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- Bracket mounts to table with screws or VESA 100mm
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
- Other Features
- Serviceable internal components; Kensington Nano Security Slot.
- What's in the Box
- Backpack with Intel; North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch); EU Power Cord (1800+/-50mm); Power Adapter – 90W; USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch); 2x SMA Antenna; Quick Installation Guide (QIG); 2x Side mount bracket and 4x M4 x 5mm screws; 4x M4 x 40mm screws
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
