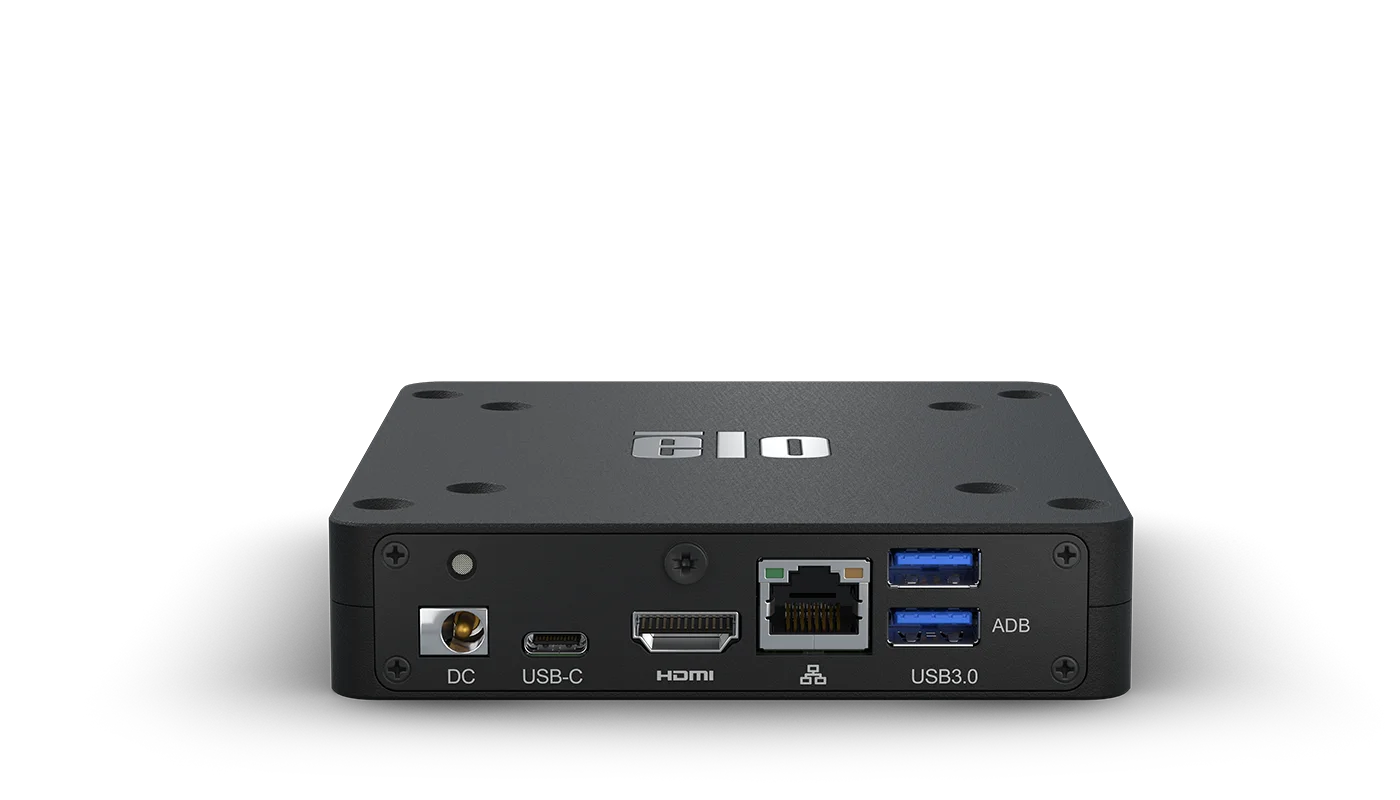

Elo Touch Elo Backpack 5 with Android
Android Enterprise Computer
- Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
Overview
The Elo Backpack delivers a powerful, enterprise-grade computer complete with a flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E and connectivity to satisfy all your needs. From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
- Purpose-built to accommodate compact spaces, the Elo Backpack offers a small footprint in both size and weight.
- Easily secure to any counter or in a kiosk in a snap with the built-in 75mm or 100mm VESA mount.

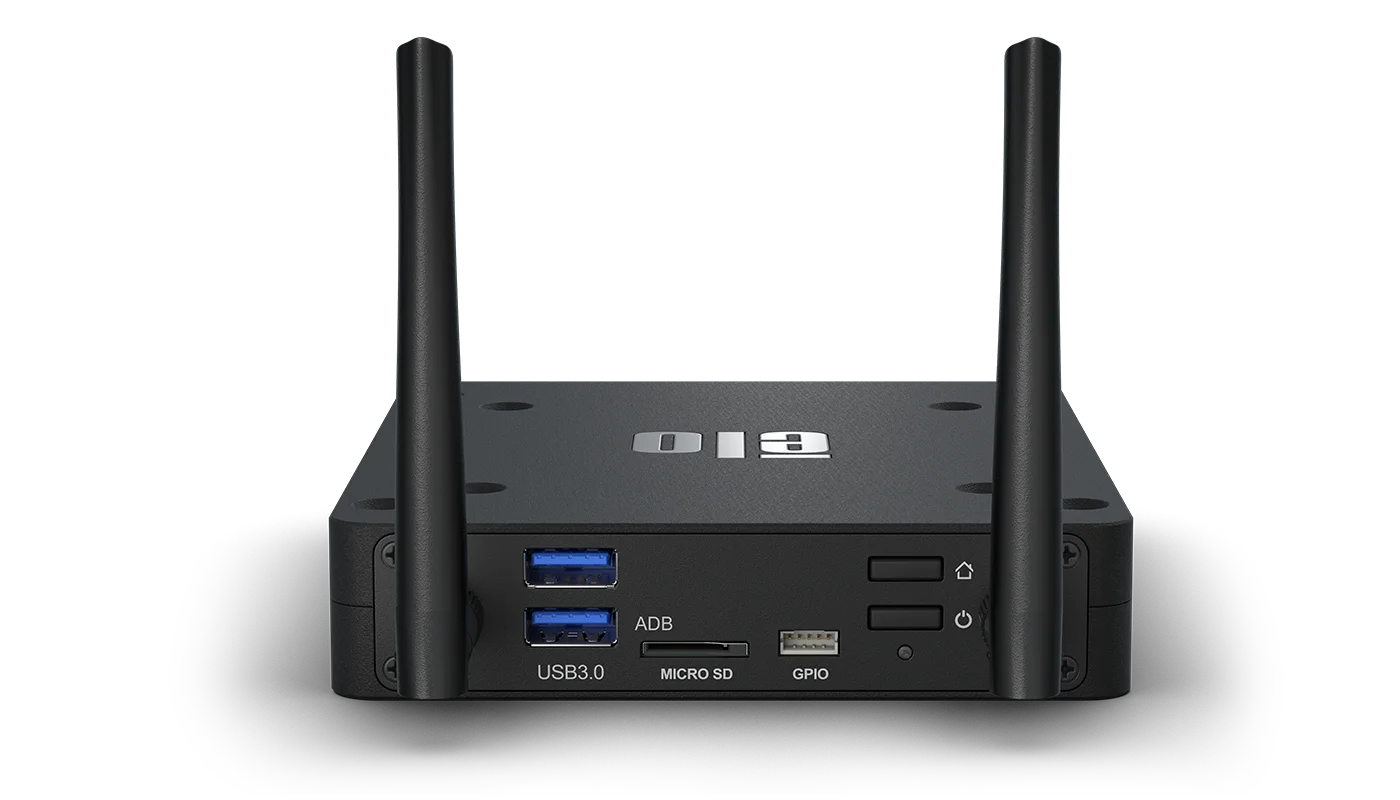

- The Elo Backpack satisfies all your connectivity needs - offering 4x USB 3.0, Ethernet, Bluetooth, Wi-Fi, HDMI, USB-C output, micro-SD, GPIO, and Wi‑Fi antennas.
- From 7-65 inches, the Backpack adds a powerful Android OS to a variety of Elo touchscreen monitors, open frames and large format interactive displays.
- With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Best for: Kitchen Display Systems · Computers for Kitchen Display Systems · Conference Room Technology · Conference Room Accessories · Price Checkers · Android Price Checkers
Specifications
Technical
- Part Number(s)
- E620713
- Enclosure Color
- Black
- Processor
- Qualcomm Snapdragon QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2; Via external antenna
- I/O Ports
- HDMI; 4x USB 3.0 support; USB-C output; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in
- OS
- Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
- Resolution
- USB-C*: 1920 x 1080 @60fps; HDMI: 3840 x 2160 @60fps; * When using USB-C for video, the USB protocols will drop to 2.0 speeds.
- Power Supply
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
- Power Consumption (Typical)
- On: 4.1W; Off: 0.1W; Sleep: 3.8W
- Mounting Options
- VESA 75mm and 100mm
- Dimensions
- 4.5" x 5.5" x 1.0" / 114 mm x 139 mm x 25.4 mm
- Shipping Box Dimensions
- Individual System: 14.6" x 8.3" x 2.4" / 371 mm x 210 mm x 62 mm; 8 systems/carton: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
- Weight (Unpackaged)
- Standard Model: 1.3 lbs / 0.59 kg
- Weight (Packaged)
- Individual System: 2.9 lbs / 1.3 kg; 8 systems/carton: 26.0 lbs / 11.8 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated
- Regulatory approvals and declarations
- UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KCC (Korea); CCC/SRRC (China); United Kingdom UKCA
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898097; 5 year OS 360 - Elo P/N: E898282; 3 year warranty coverage - Elo P/N: E895914; 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 2 year warranty coverage + AUR - Elo P/N: E896513; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package.
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
- What's in the Box
- Backpack; North American Power Cable; European Power Cable; 1x Power Brick with locking screw; 2x Antenna; Quick Install Guide; 4x Screws (M4x30mm); 4x Screws (M4x35mm)
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
