Overview

The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier. From signage and kiosks to automation controls, pair the Elo Backpack with EloView™ or your preferred management tools to simplify the delivery of content, enable remote management capabilities and create a consistent deployment that is cost effective and optimized for commercial use.

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
Many businesses are tasked with digital transformation and are trying to figure out how to incorporate consumer technologies into their business. With Elo’s approach to Android, including uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors, users gain the advantage of years of development and customizations Elo has made for many global Enterprise customers. Choose Elo to easily deliver the convenience and familiarity of Android in secure, business-friendly solutions.
From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, the Elo Backpack offers the connectivity and durability to thrive under the demands of continuous use.
Purpose-built to accommodate compact spaces, the Elo Backpack offers a small footprint in both size and weight.
Easily secure to any counter or in a kiosk in a snap with the built-in 75mm or 100mm VESA mount.

Best for: Kitchen Display Systems · Computers for Kitchen Display Systems

Specifications

Technical

Part Number(s): Standard Model, Android 10 - E393359; Standard Model, Android 12 - E754364; Value Model, Android 10 - E393754; Value Model, Android 12 - E792849
Enclosure Color: Black
Processor: Standard Model: Qualcomm Snapdragon SDA660; Value Model: Rockchip RK3399
Memory (RAM): 4GB LPDDR4
Storage: Standard Model: 64GB; Value Model: 32GB
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0; Via external antenna

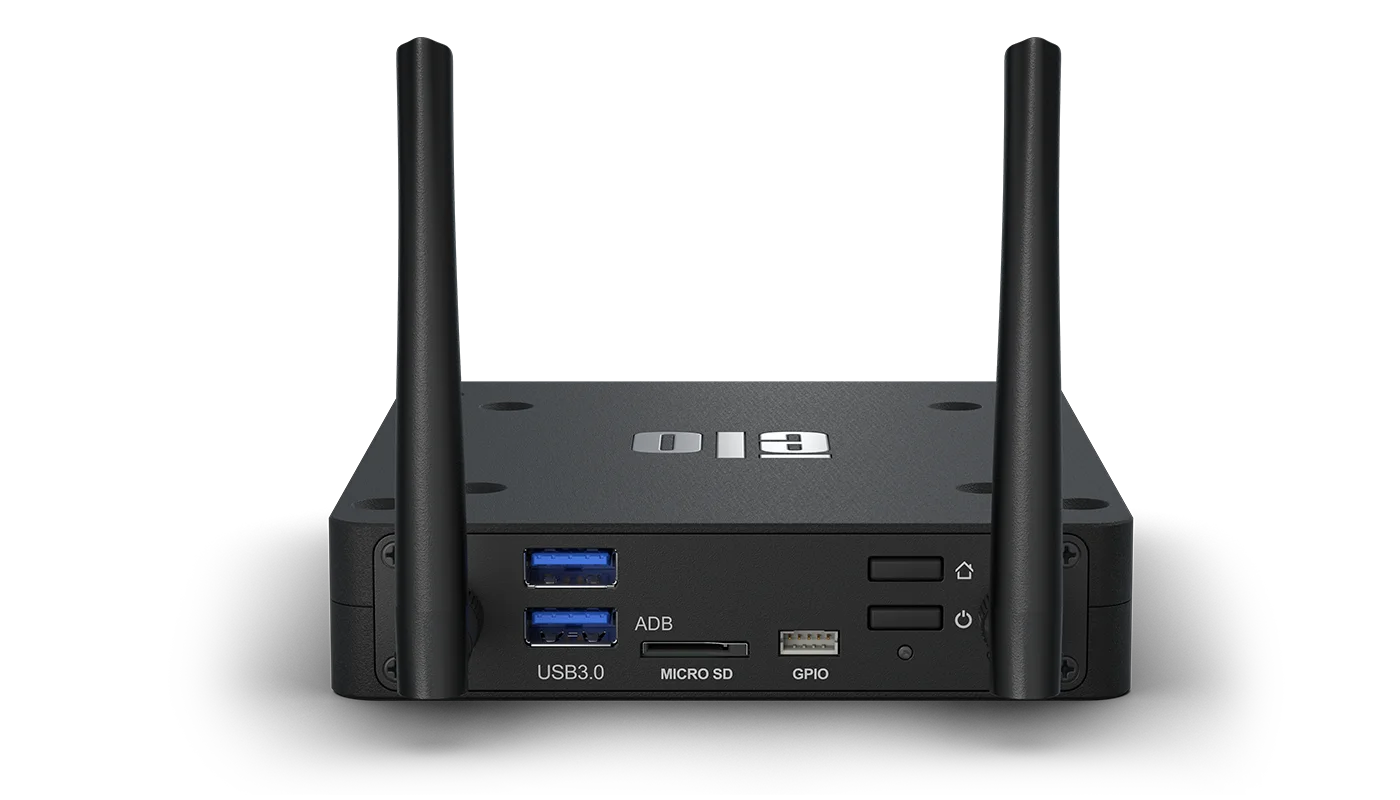

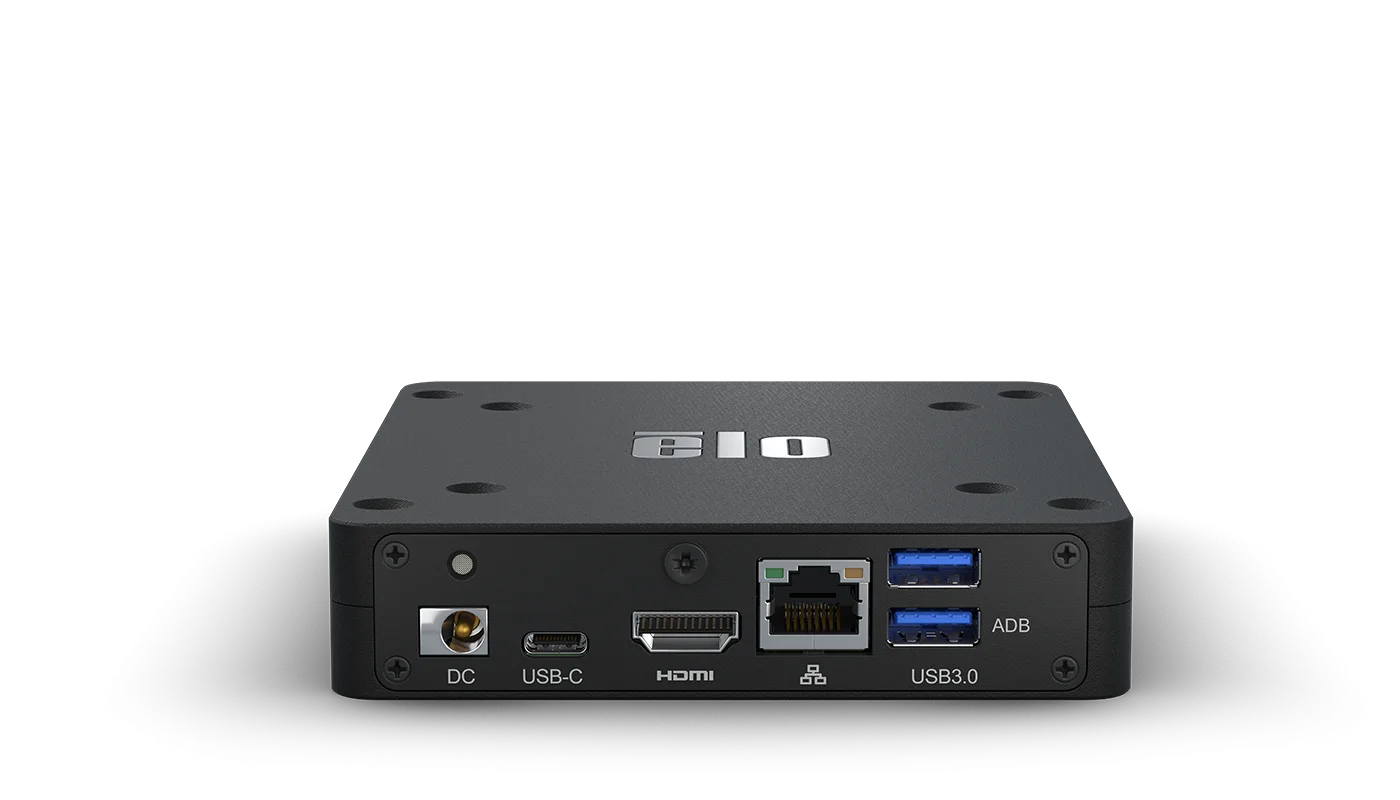

I/O Ports: HDMI; 4x USB 3.0 support; USB-C output; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in
OS: Android 10 with Google Play Services (AOSP capable); Upgrade to Android 12 and planned upgrade to Android 14 are available with an OS 360 subscription
Resolution: Standard Model:; USB-C*: 1920 x 1080 @60fps; HDMI: 3840 x 2160 @30fps; * When using USB-C for video, the USB protocols will drop to 2.0 speeds.; Value Model:; USB-C: 3840 x 2160 @60fps; HDMI: 3840 x 2160 @60fps
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
Power Consumption (Typical): Standard Model:; On: 9.9W; Off: 0.4W; Sleep: 3.2W; Value Model:; On: 3.2W; Off: 0.3W; Sleep: 2.1W
Mounting Options: VESA 75mm and 100mm
Dimensions: 4.5" x 5.5" x 1.0" / 114 mm x 139 mm x 25.4 mm
Shipping Box Dimensions: Individual System:; Standard Model: 14.6" x 8.3" x 2.4" / 371 mm x 210 mm x 62 mm; Value Model: 14.6" x 8.2" x 2.4" / 371 mm x 208 mm x 62 mm; 8 systems/carton:; Standard Model: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm; Value Model: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
Weight (Unpackaged): Standard Model: 1.3 lbs / 0.59 kg; Value Model: 0.82 lbs / 0.37 kg
Weight (Packaged): Individual System:; Standard Model: 2.9 lbs / 1.3 kg; Value Model: 0.82 lbs / 0.37 kg; 8 systems/carton:; Standard Model: 26.0 lbs / 11.8 kg; Value Model: 22.38 lbs / 10.15 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95%
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); IMDA (Singapore) - Value Model only
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E873133; 3 year warranty coverage - Elo P/N: E895914; 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 2 year warranty coverage + AUR - Elo P/N: E896513; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
OS Support: Monthly Android security updates available with Elo OS 360 package.
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
What's in the Box: Backpack 4; North American Power Cable; European Power Cable; 1x Power Brick with locking screw; 2x Antenna; Quick Install Guide; 4x Screws (M4x30mm); 4x Screws (M4x35mm)
Optional Accessories: Replacement power brick kit - Elo P/N: E682057

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
