Elo Touch · Accessory

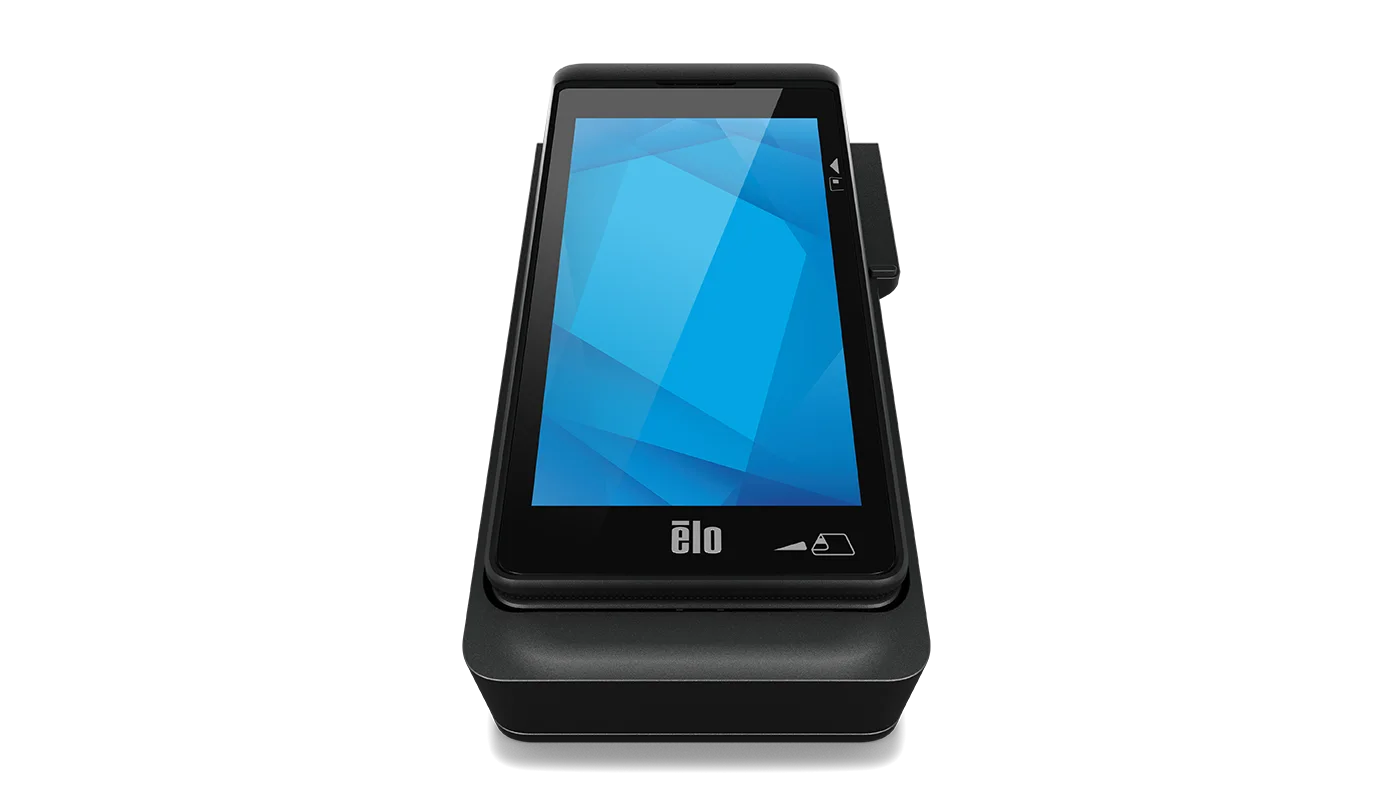

Elo Touch DS11 Docking Station
Specifications
Technical
- Part Number(s)
- E392249
- Enclosure Color
- Black
- Compatibility
- M60 Mobile Computer
- I/O Ports
- USB-C
- Dimensions
- 6.93" x 3.93" x 2.41" / 176 mm x 99.9 mm x 61.2 mm
- Shipping Box Dimensions
- 8.97" x 7.05" x 3.82" / 228 mm x 179 mm x 97 mm
- Mounting Options
- Countertop (Refer to QIG for more details)
- Weight (Unpackaged)
- 1.1 lbs / 0.5 kg
- Weight (Packaged)
- 1.54 lbs / 0.7 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B; VCCI (Japan); RCM (Australia); China RoHS
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- DS11 Docking Station; 1x tie wrap for cable management; 1x M60S/M60SC holder; 1x HS11 hand strap; 2x key; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
