Elo Touch · Accessory

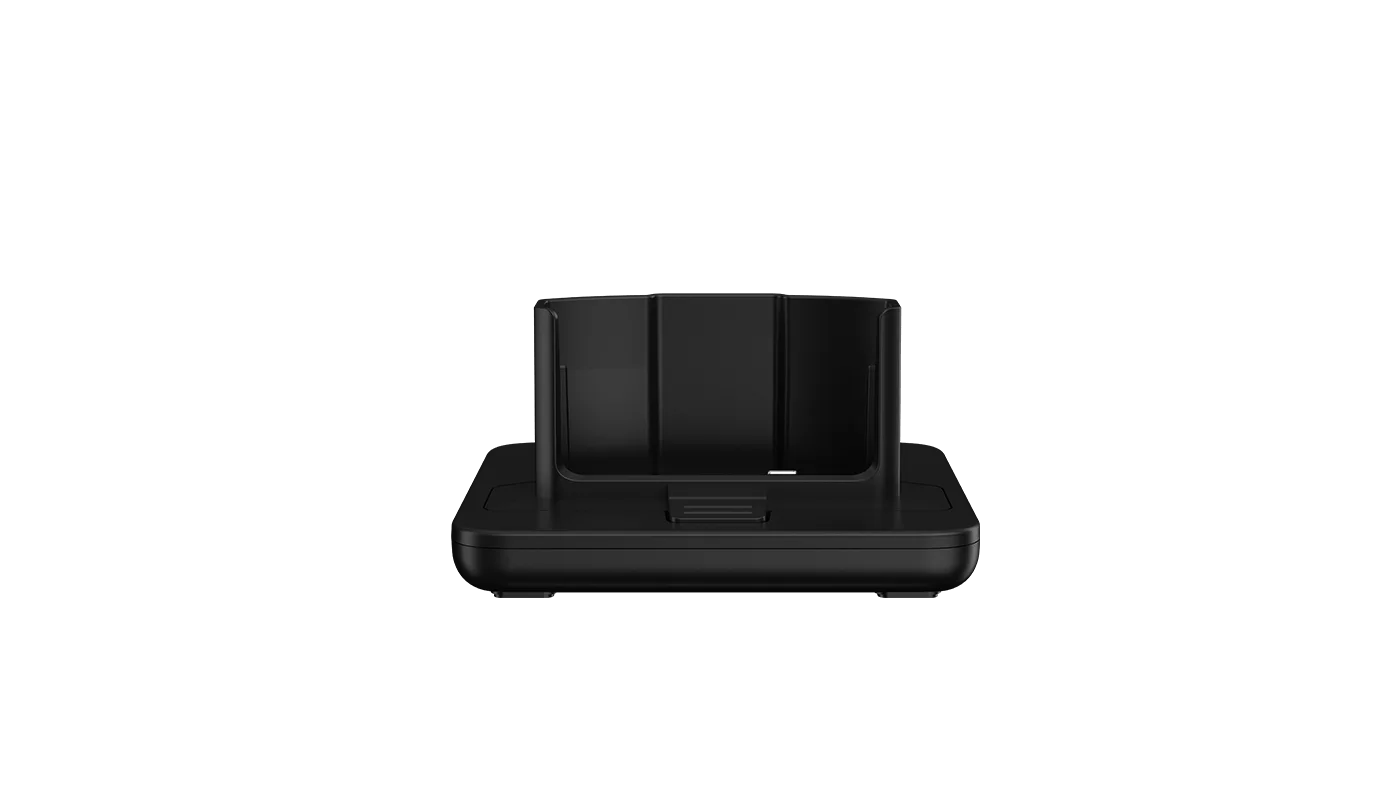

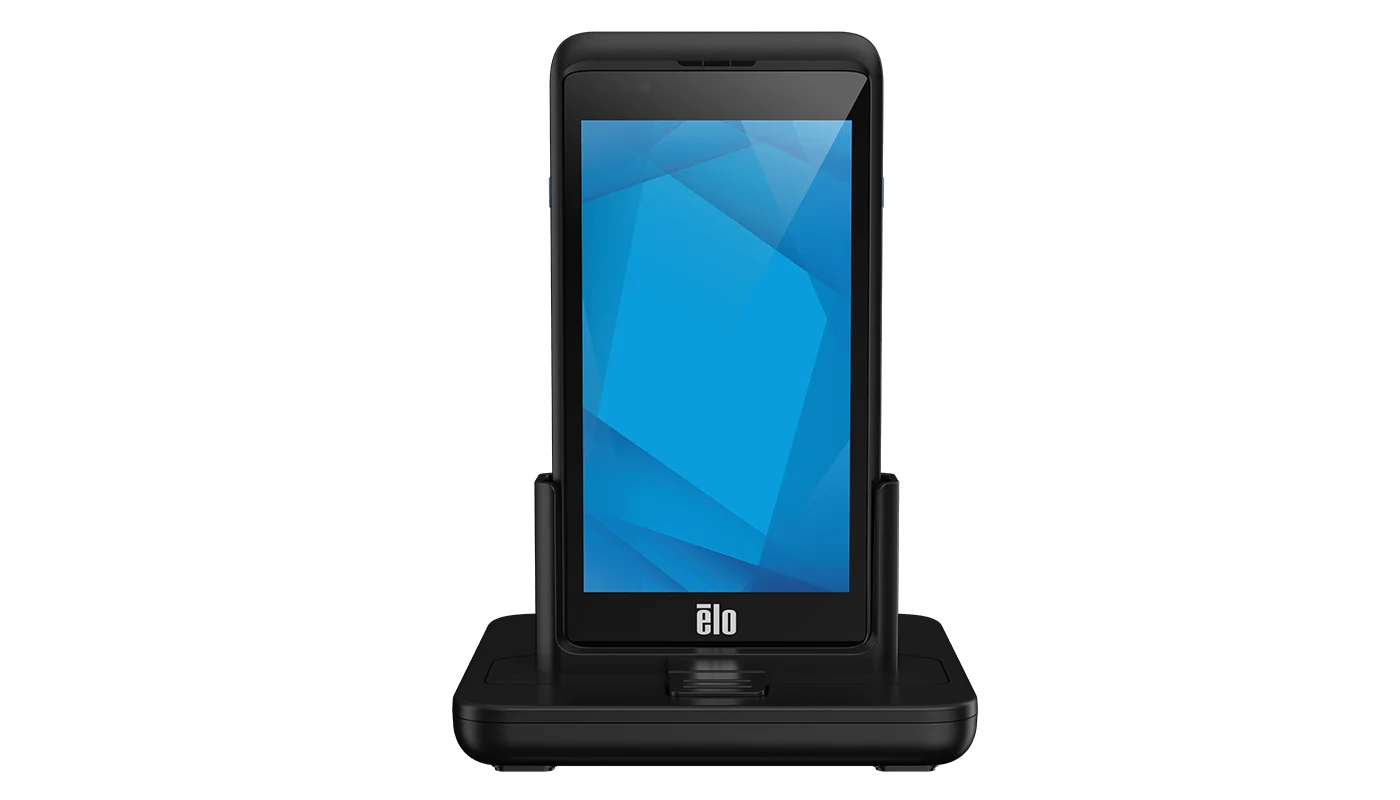

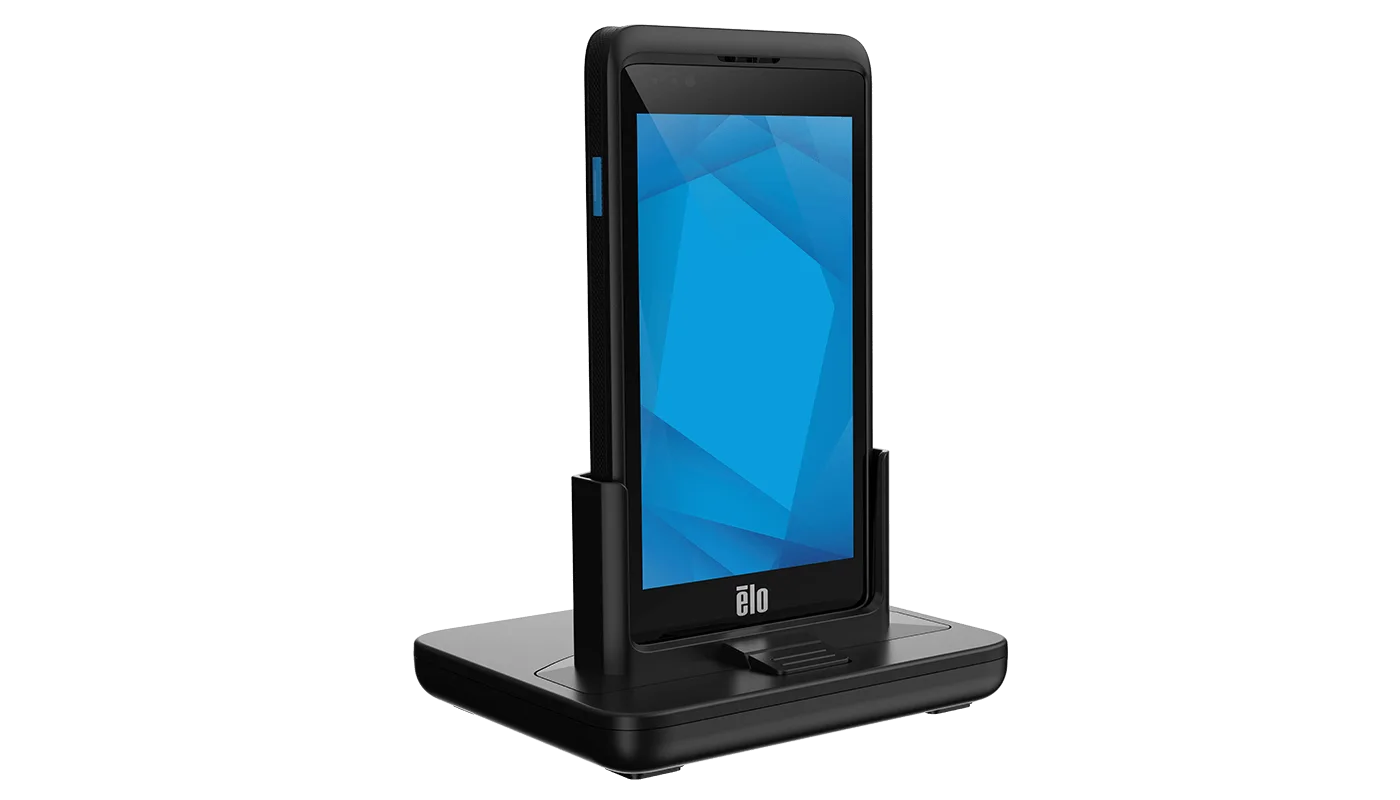

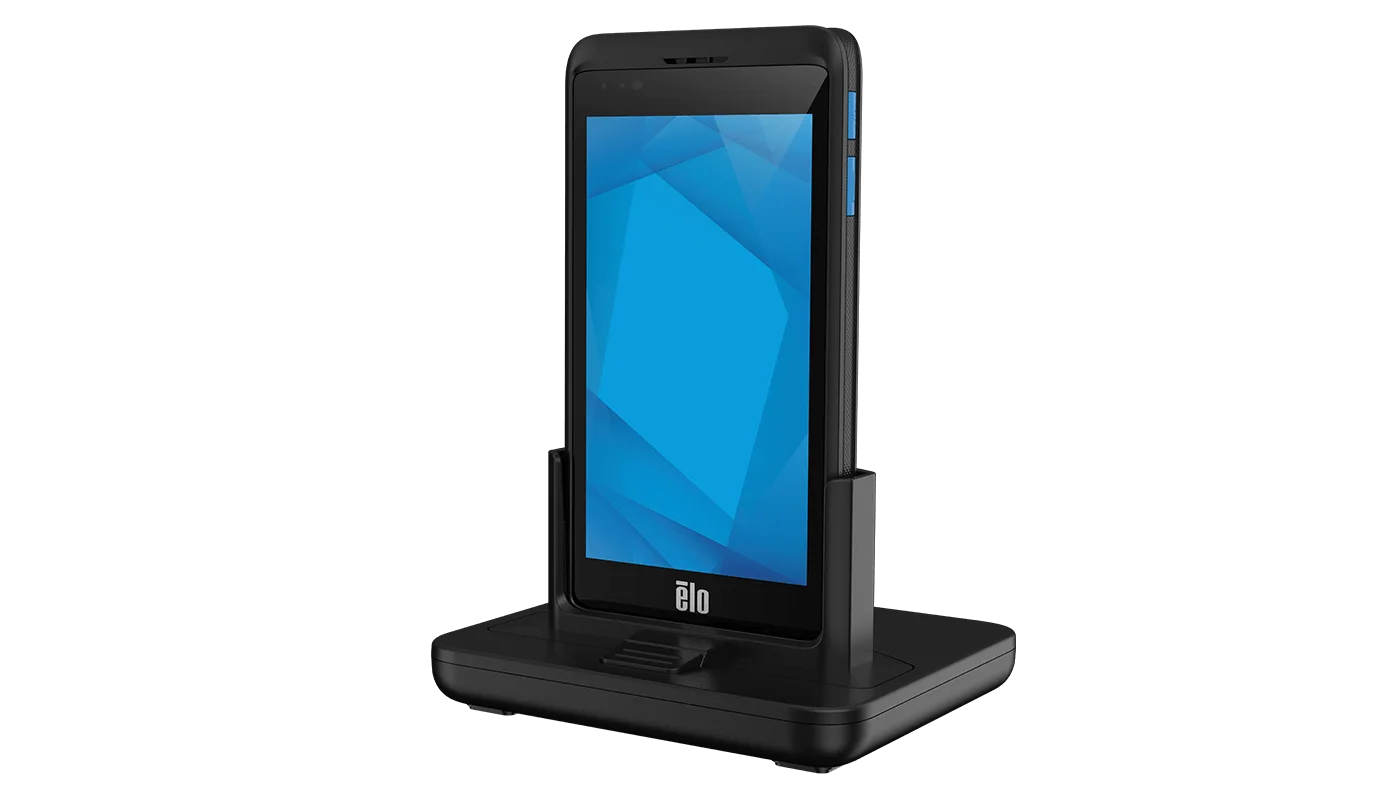

Elo Touch DS10 Docking Station
Specifications
Technical
- Part Number(s)
- E864066
- Enclosure Color
- Black
- Compatibility
- M50 Mobile Computer
- I/O Ports
- USB-C
- Dimensions
- 2.71" x 5.18" x 3.7" / 69 mm x 131.6 mm x 94 mm
- Shipping Box Dimensions
- 6.89" x 5.51" x 4.65" / 175 mm x 140 mm x 118 mm
- Mounting Options
- Countertop (Refer to QIG for more details)
- Weight (Unpackaged)
- 1.2 lbs / 0.55 kg
- Weight (Packaged)
- 4.0 lbs / 1.8 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B; VCCI (Japan); RCM (Australia); China RoHS
- MTBF
- 50,000 hours demonstrated
- Warranty
- 1-year
- What's in the Box
- 2x M4 screws for mounting; 1x tie wrap for cable management; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
