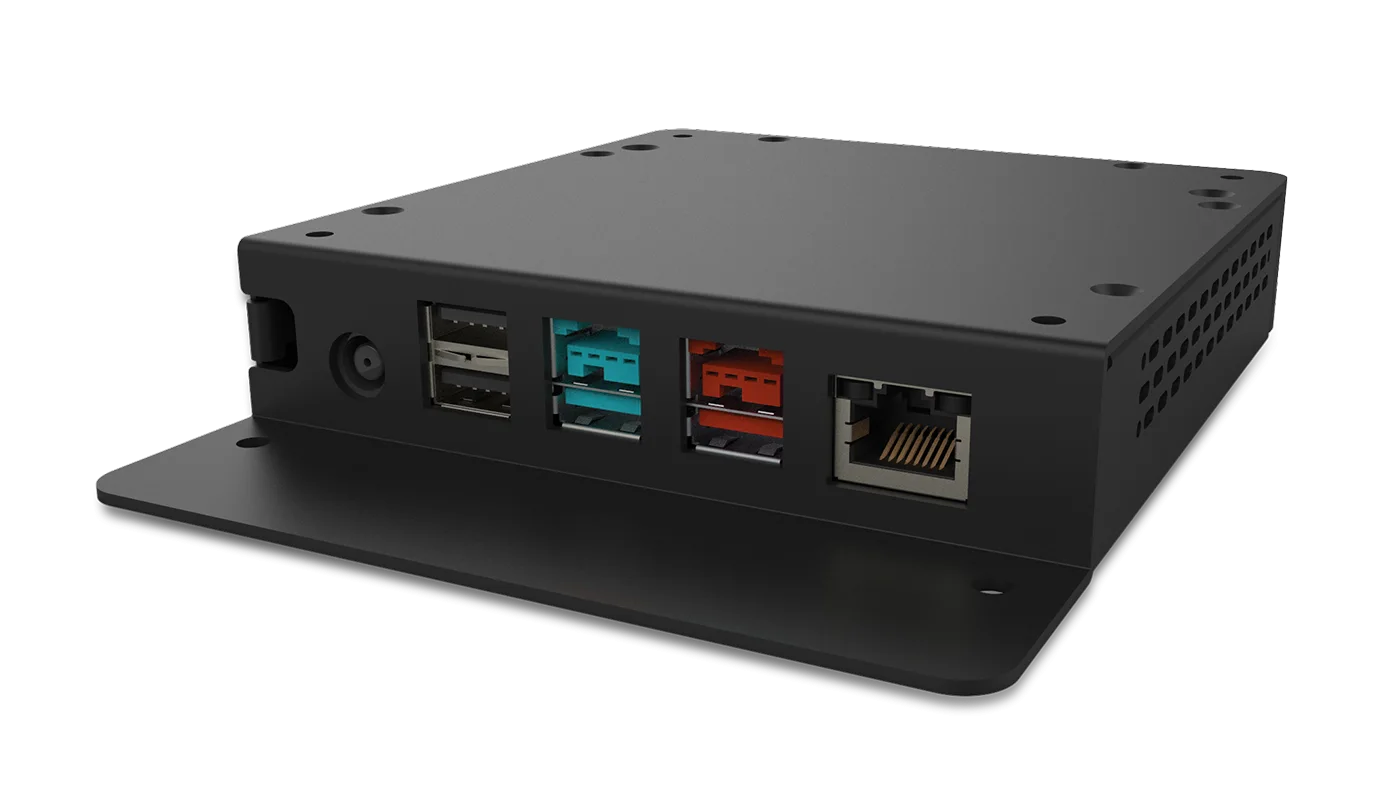

Elo Touch Android Expansion Module
Overview
Elo's expansion module provides options for installation - either on the back of the I-Series unit with a VESA mount or under the flip stand for better cable management.
Specifications
Technical
- Part Number(s)
- E809509
- Enclosure Color
- Black
- Compatibility
- I-Series 4; Note: Expansion Module can only be used with the power brick included in the kit (I-Series power brick is not compatible).
- I/O Ports
- 12V (1.5A) Powered USB; 24V (2.3A) Powered USB; Serial COM Port (RJ45); 5V USB 2.0 (x2); 19V DC IN
- Dimensions
- 5.79" x 4.69" x 1.02" / 147 mm x 119 mm x 26 mm
- Shipping Box Dimensions
- 13.5" x 10.0" x 3.93" / 344 mm x 255 mm x 100 mm
- Mounting Options
- 100mm VESA mount; Additional mounting options with I-Series Flip Stand - Elo P/N: E924077 (see I-Series Flip Stand dimensional drawing MS601866 for more details)
- Weight (Unpackaged)
- 1.26 lbs / 0.57 kg
- Weight (Packaged)
- 4.00 lbs /1.81 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- Regulatory approvals and declarations
- CE (Europe) - Class A; China RoHS; The following countries are certified with the I-Series:; UL, FCC (US) - Class A; cUL, IC (Canada); CB (International safety); VCCI (Japan); RCM (Australia)
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- What's in the Box
- Power adapter; Power cable (1.8 m) IEC 60320-C5 to NA plug; Power cable (1.8 m) IEC 60320-C5 to EU/KR plug; RJ45 to DB9 Serial Cable; Specific for flip-stand (E924077):; Qty.2 - M4 x 6 pan head; Qty.2 – M4 X 28 flat head; Qty.1 – M3 X 8 pan head; Qty.3 – tie-wrap; QIG PN E988926; Cable Bracket; Qty.1 – M3x4 pan head
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
