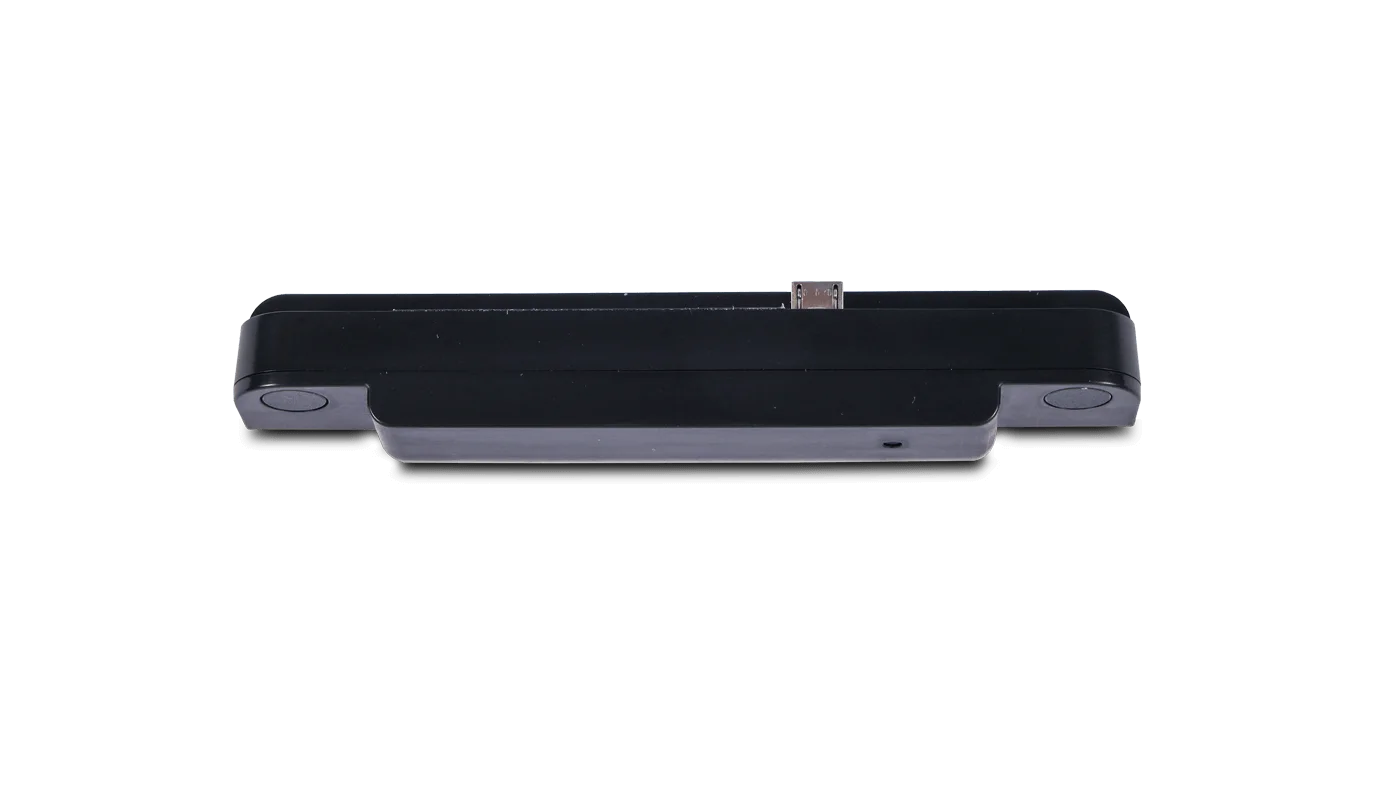

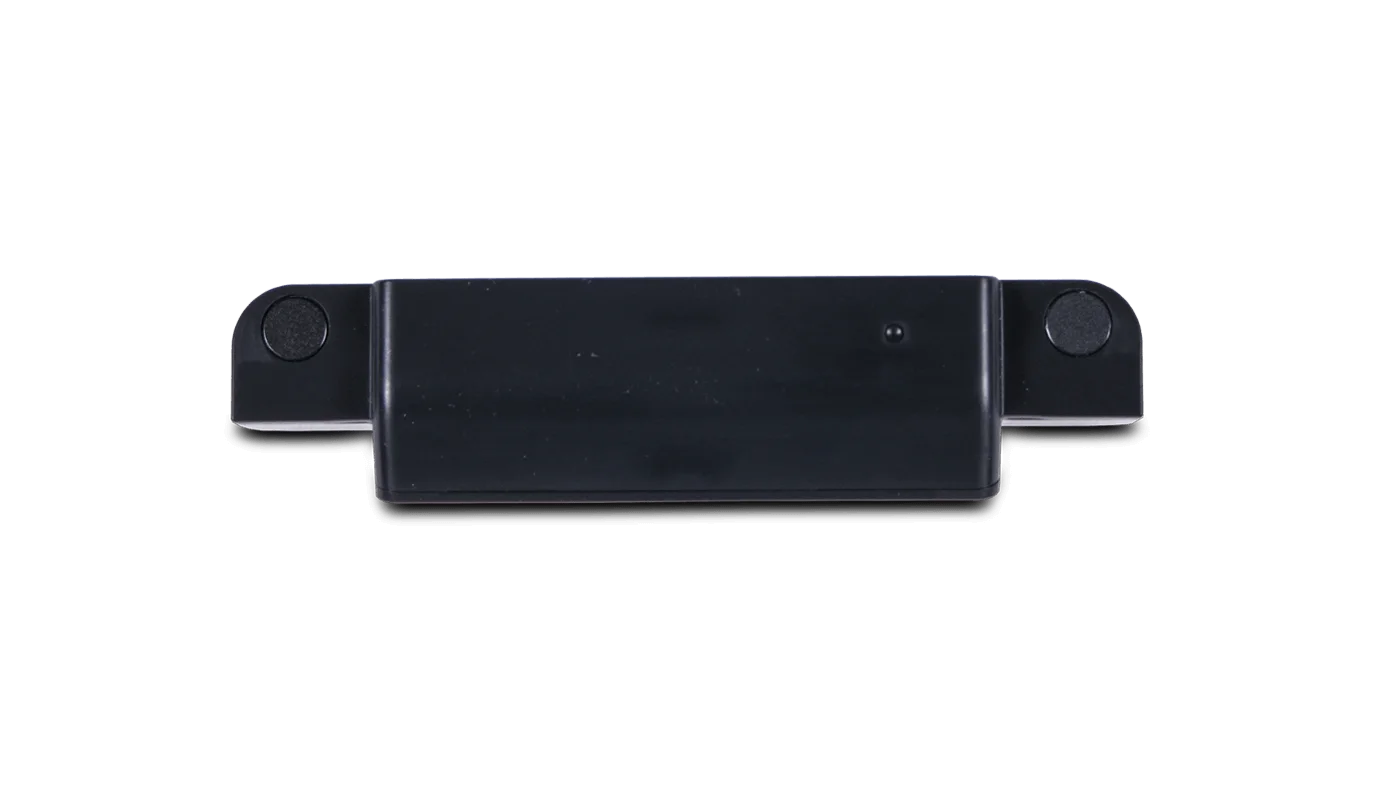

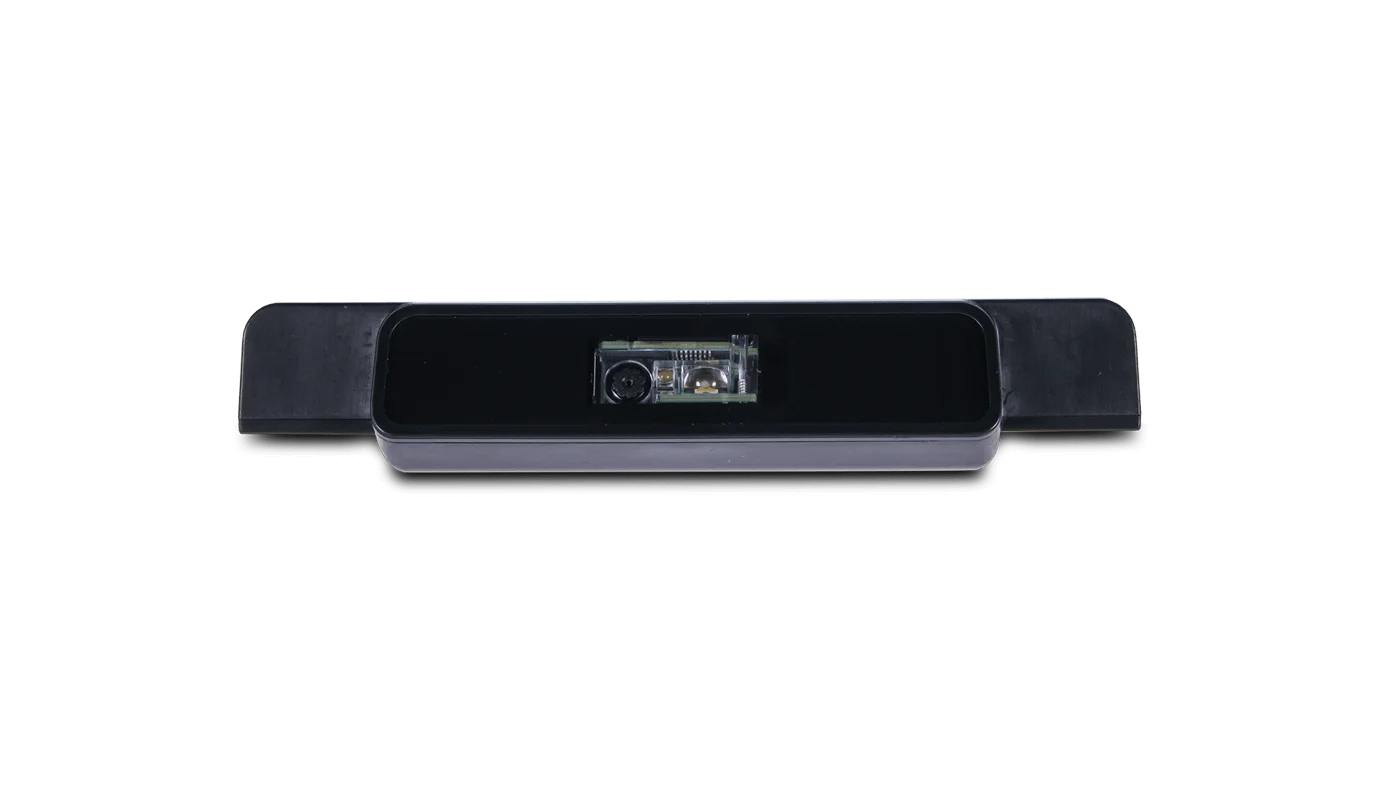

Elo Touch 2D Barcode Scanner (Gen 1)
Overview
Overview
Improve self-service and price-checker applications when you couple the 2D Barcode scanner with an Elo touchscreen. Change the way your customers interact in-store by deploying a new generation of price-checkers that can run apps and websites, allowing companies to utilize the product for brand messaging and endless aisle applications while maintaining the main purpose as a price checking solution. When coupling the 2D barcode scanner with Elo’s I-Series for Android and EloView™, content and device management can be done with ease. EloView is a ground breaking platform from Elo that allows you to deploy content for kiosk based applications to multiple locations remotely.
- POS and kiosk management can be even easier with EloView. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView has got you covered. EloView software provides device setup, remote management, alerts, attract loops, and the ability to securely upgrade the operating system, applications, and content.
Specifications
Technical

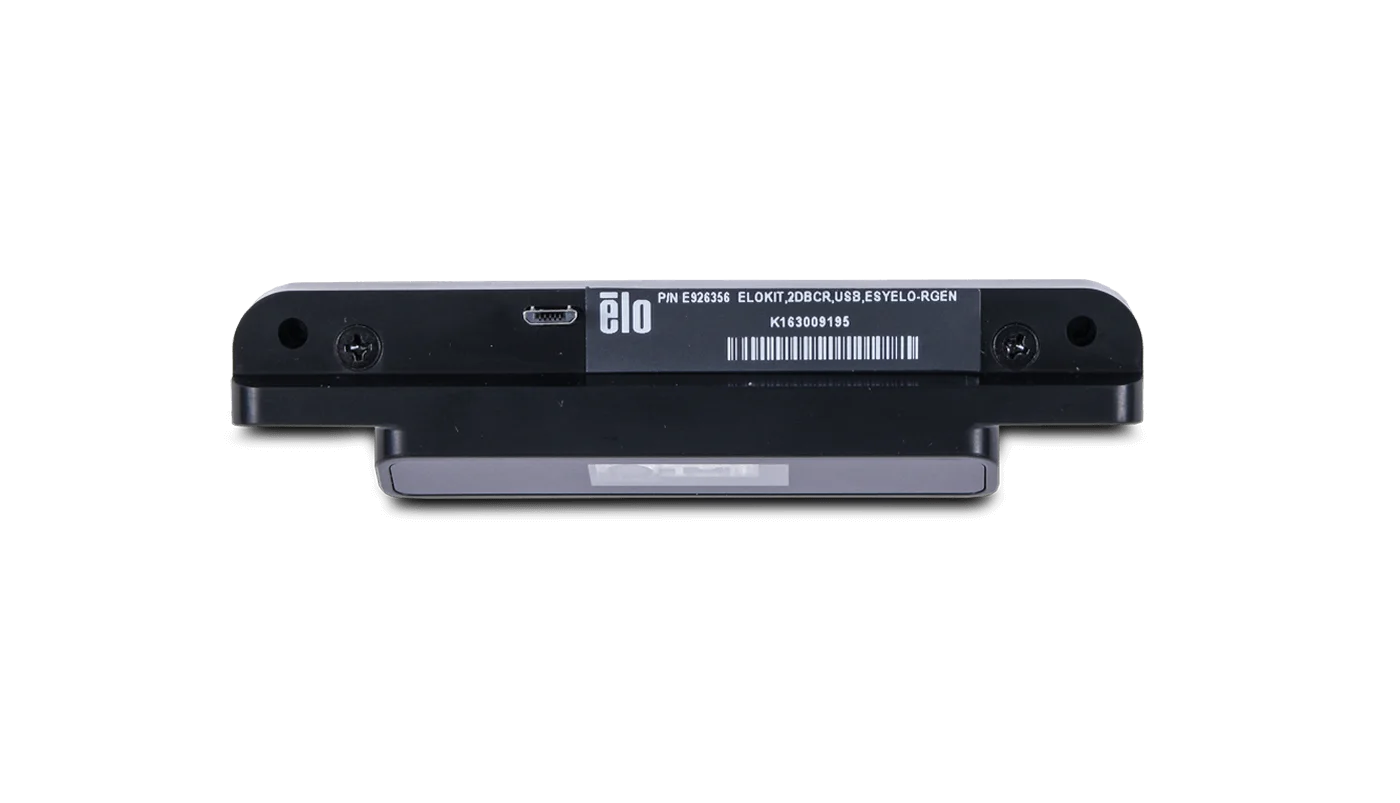

- Part Number(s)
- E926356
- Enclosure Color
- Black
- Supported Operating Systems
- Windows 7; Windows 8; Windows 10; Android 4.0 and above
- Barcode Engine
- N3680 series compact decoded 2D barcode engine
- Standard Configuration
- VCP Mode (USB Serial) with Presentation Mode Enabled
- Supported Terminal Modes
- HID; Keyboard; USB Serial (COM driver required)
- Reader Type
- 2D barcode reader
- Sensor
- CMOS Sensor
- Resolution
- 640 x 480
- Illumination & Aiming
- White LED illumination; Red LED dot aimer
- Ideal Scan Distance
- 60 – 152 mm / 6 -15.2 cm (depends on barcode quality, size and environment conditions)
- Supported Symbologies
- Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data bar; 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417; 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) code; Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
- Viewing Angle
- Horizontal: 37.8° / Vertical: 28.8°
- Beeper Output
- 85 db min @ 10cm
- Ambient Light
- 0-100,000 lux
- Typical Current Draw
- 220 mA while scanning; 65 mA at Idle; 2.5 mA while on standby
- Input Voltage
- 5V
- Weight (Unpackaged)
- 0.06 lbs / 0.03 kg
- Weight (Packaged)
- 0.36 lbs / 0.16 kg
- Dimensions
- 0.63'' x 4.68'' x 1.15'' / 16mm x 118.9mm x 29.1mm
- Shipping Box Dimensions
- 5.51'' x 8.86'' x 2.76'' / 140mm x 225mm x 70mm

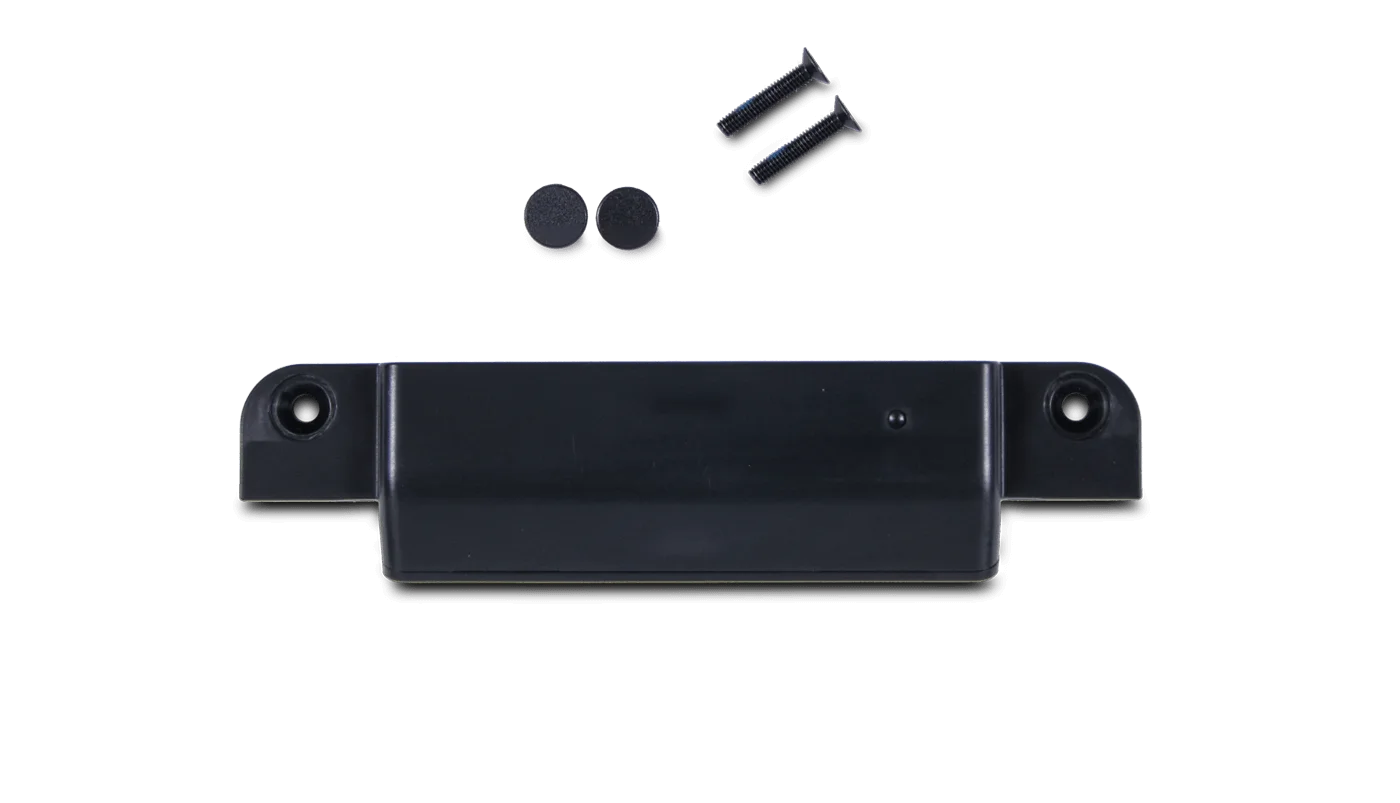

- What's in the Box
- 2D Scanner; 2 Mounting screws; 2 Mylar screw covers; QIG
- Warranty
- 3-year
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
