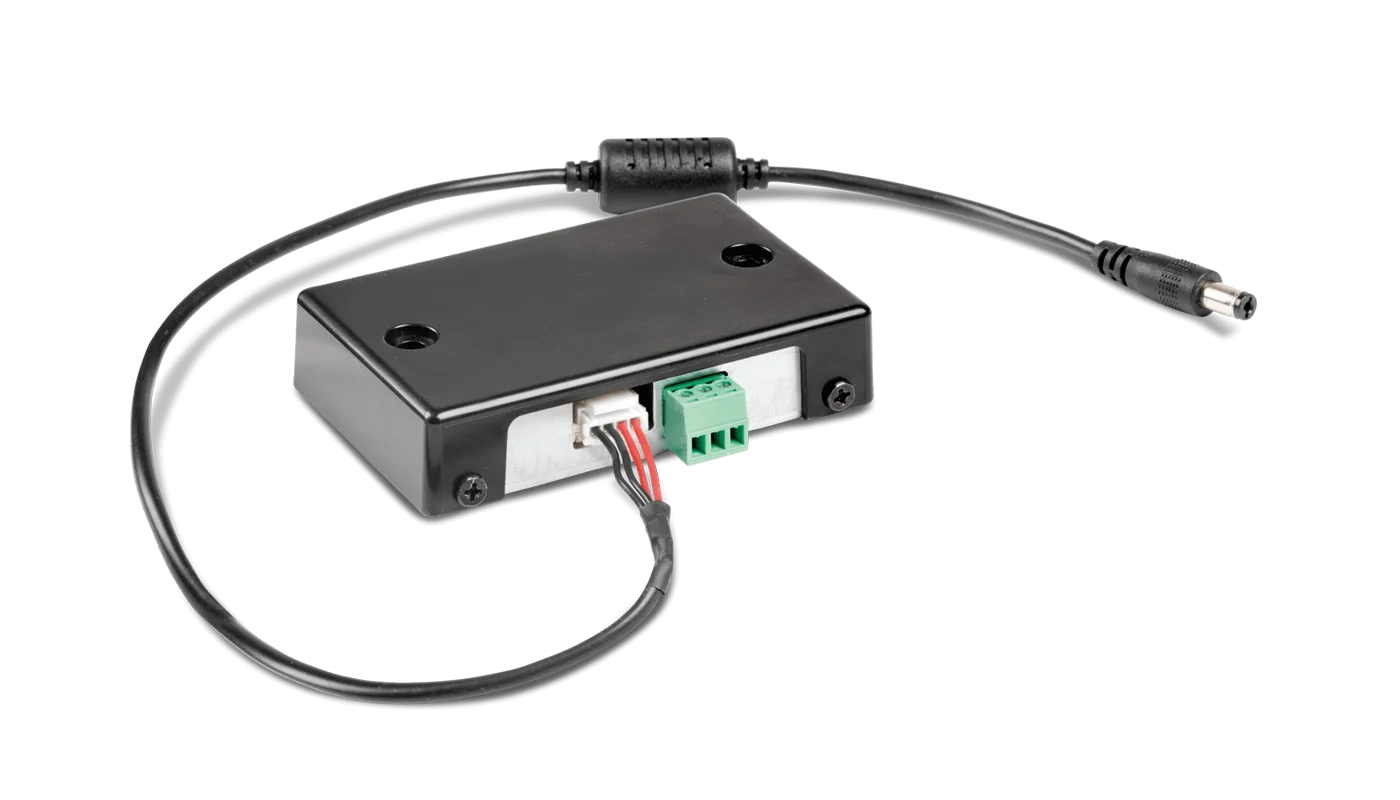

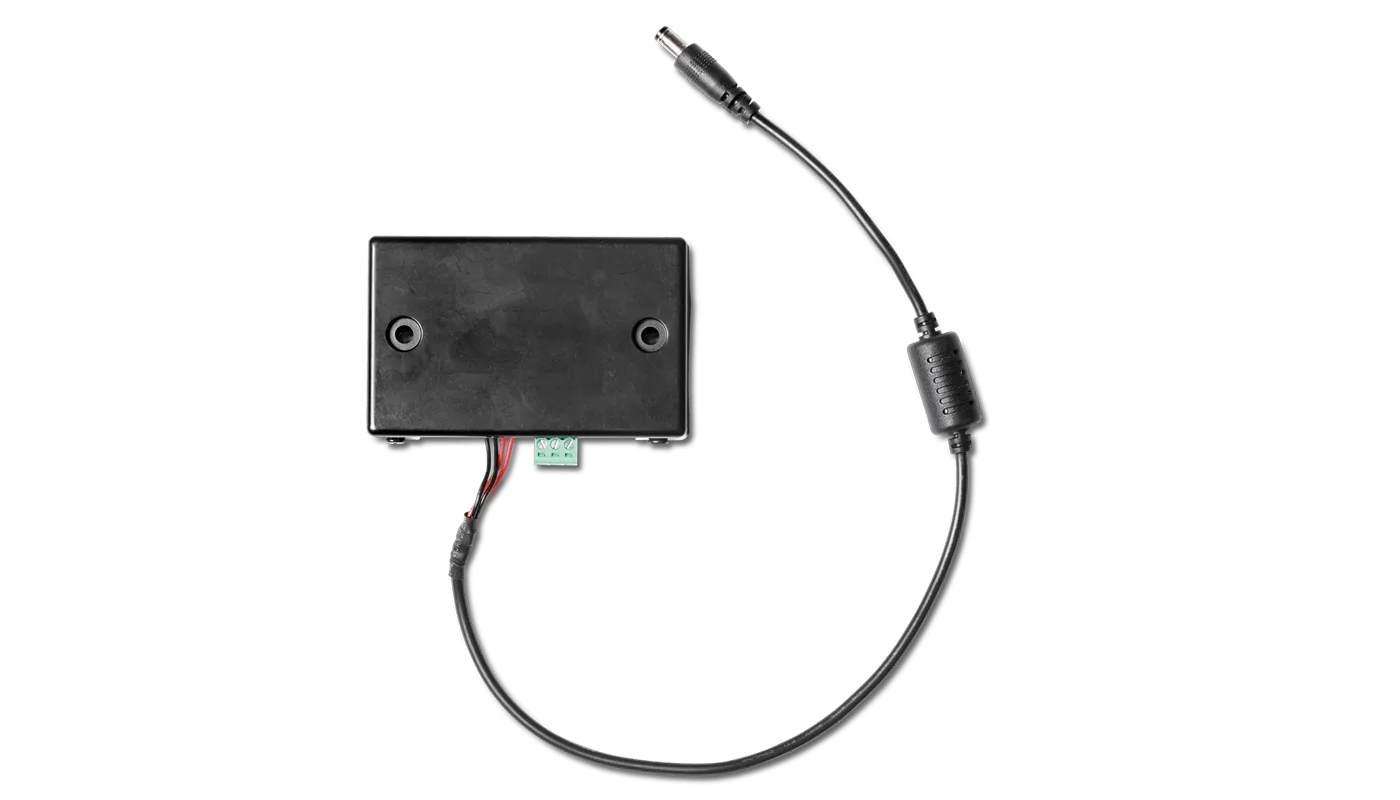

Elo Touch 24 VDC Converter Kit
The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. On the 1598L
Overview
The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. On the 1598L open frame touchscreen there are mounting features that enable the converter to be mounted on the back of the monitor. The power converter can also be used with other Elo 90-Series open frames via other kiosk mounting options.
Specifications
Technical
- Part Number(s)
- E239980
- Enclosure Color
- Black
- Input Connector Type
- Terminal Block
- Output Cable
- Coaxial power jack (2.1mm (+0.0 -0.1mm) pin outer diameter, 5.5mm (+/- 0.05mm)barrel inner diameter, 9.5mm (+/- 0.3mm) Barrel depth, 400mm (+/- 20mm) Cable length)
- Input Voltage
- 24VDC +/- 5%
- Input Current
- Maximum 1.9A
- Output Voltage
- 12VDC +/- 5%
- Output Current
- Maximum 3.5A
- Dimensions
- 3.57" x 2.25" x 0.80" / 90.71 mm x 57.06 mm x 20.40 mm
- Shipping Box Dimensions
- 6.06" x 4.53" x 3.35" / 154 mm x 115 mm x 85 mm
- Weight (Unpackaged)
- 0.24 lbs / 0.11 Kg
- Weight (Packaged)
- 0.51 lbs / 0.23 Kg
- Operating Temperature
- 0° C to 50° C / 32° F to 122° F
- Storage Temperature
- -20° C to 70° C / -4° F to 158° F
- Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Regulatory approvals and declarations
- FCC CE RCM VCCI
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
